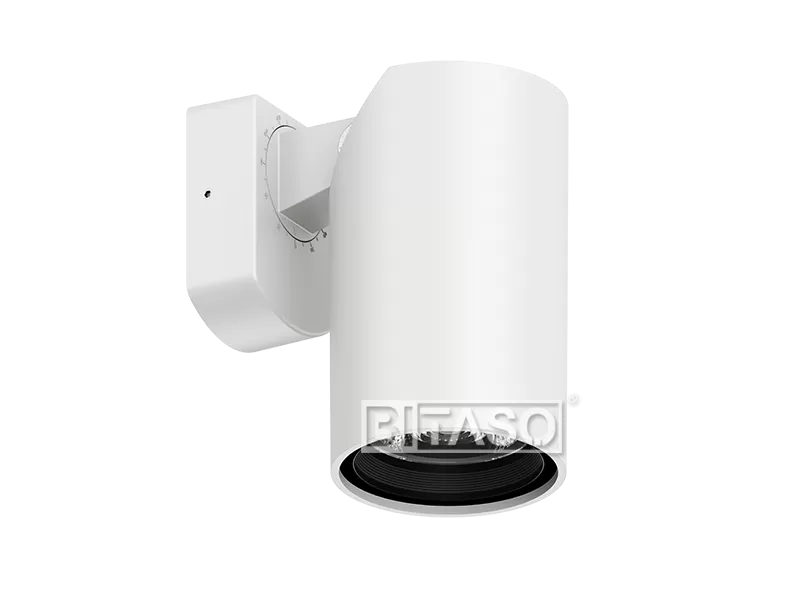

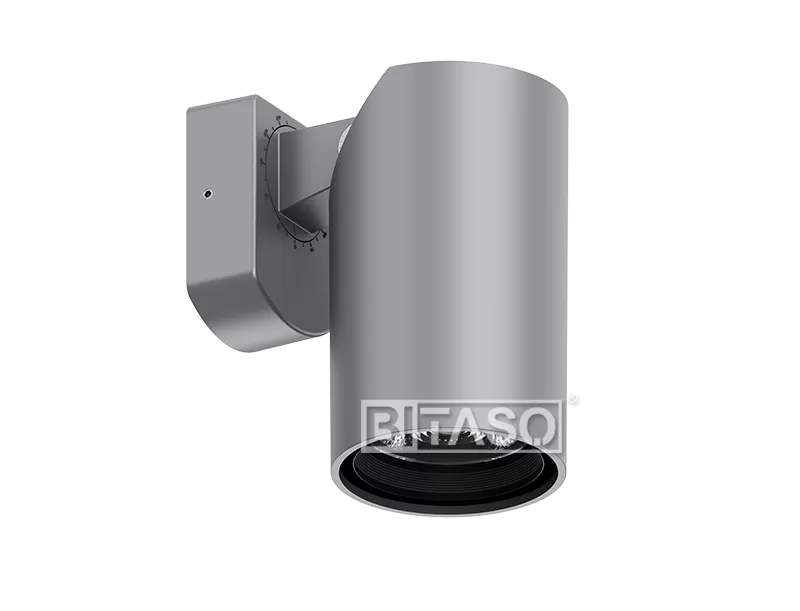

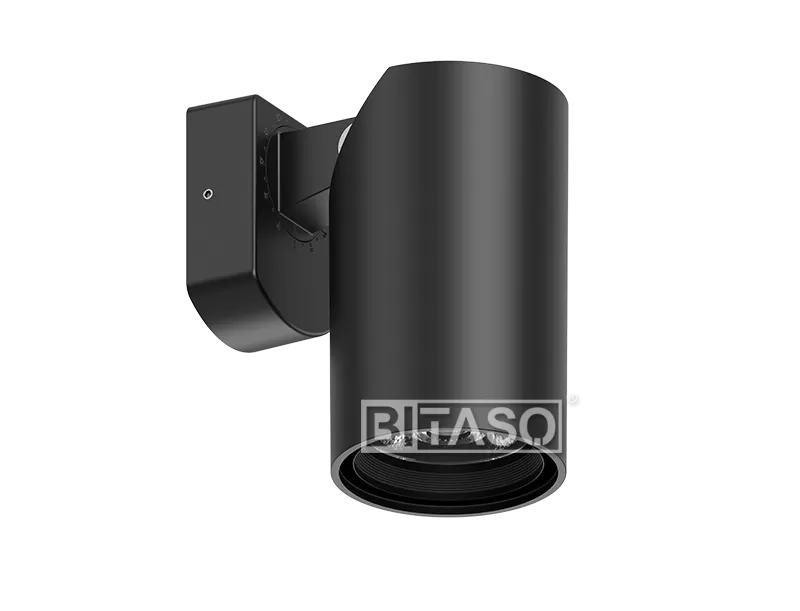

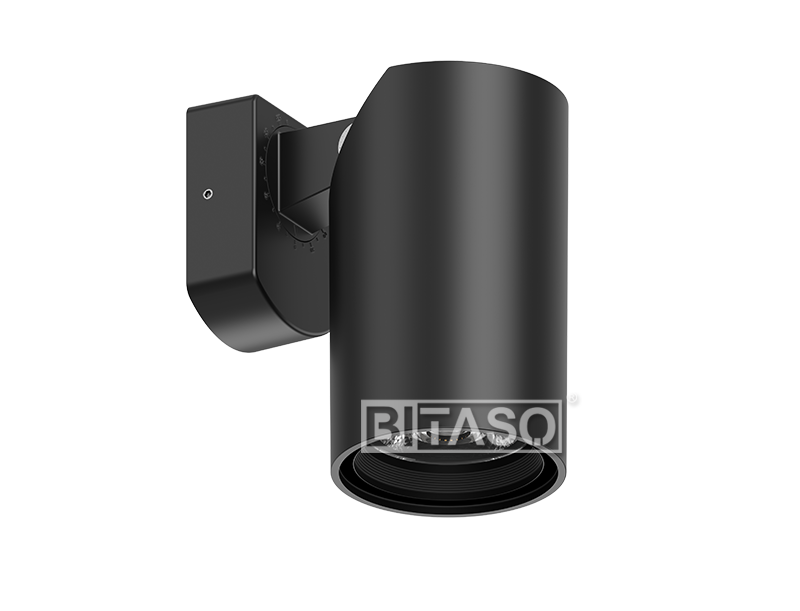

AGLAIA outdoor wall sconce is constructed with 12# Die-casting powder coated aluminum, not rusty and corroded. Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort. Discreet and compact aesthetically designed architectural outdoor spotlight, ideal for glare-free accent lighting, floodlighting and wall washing in the outdoor area. Led outdoor wall mounted down light for front door, patio, exterior porch lights.
ELECTRONICS
| Power(Luminaire) | 15-24W | Power Factor | >0.9 |
| Input Voltage | DC24V DC48V AC110-240V 50/60Hz | Driver Option | Integral control gear |
| Dmming Type | ON/OFF, 0-10V, DALI, Triac, DMX | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | 1PCS COB | Lumen（Luminaire): | 1350LM-2160LM |
| LED Brand | CREE/BRIDGELUX/CITILED/TYANSHINE COB | Luminaire Lminous Efficacy | 90LM/W |
| Full White LED(FW) | 2700K/3000K/4000K/5000K/5700K | Tunable White | 2700K/6500K |
| Multi Color | RGB, RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 15°,18°,34°,60°(Reflector Cup)/15°,24°,36°,50°,60°(Lens) |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Honeycomb Louver |
CONTROL SYSTEM
| Control | ON/OFF, 0-10V, DALI, Triac, DMX | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK08, IP65, Class I | Certificate | IP65, CE, ETL, RoHS, CCC |

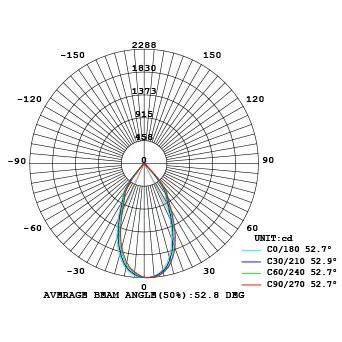

LIGHT DISTRIBUTION
MECHANICS
| Dimension | 86x159mm | Weight | 0.55KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |

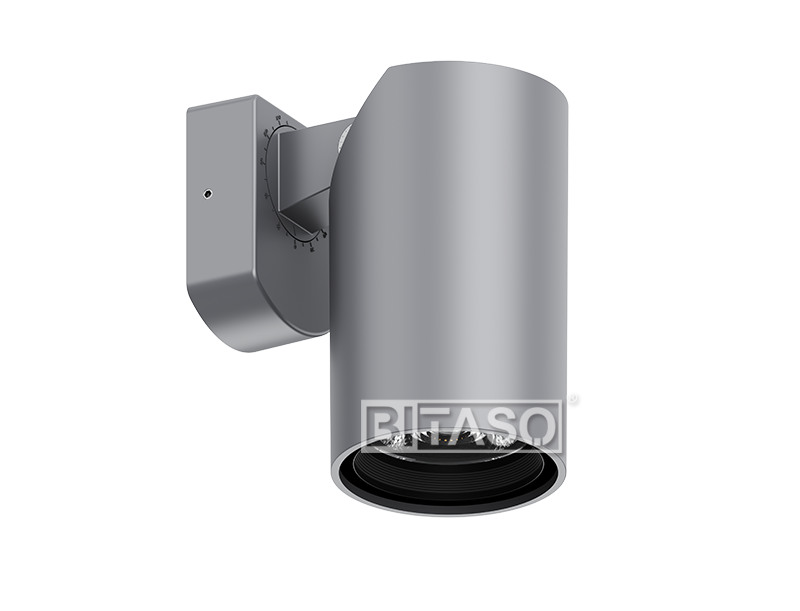

| Finish | Black/Grey/White | Mounting Type | Wall Mounted |
OPTIONAL ACCESSORIES
Honeycomb Grille
Honeycomb Louver
M16 2_3PIN IP68 Connector
20T-2_3_4PIN IP68 Connector

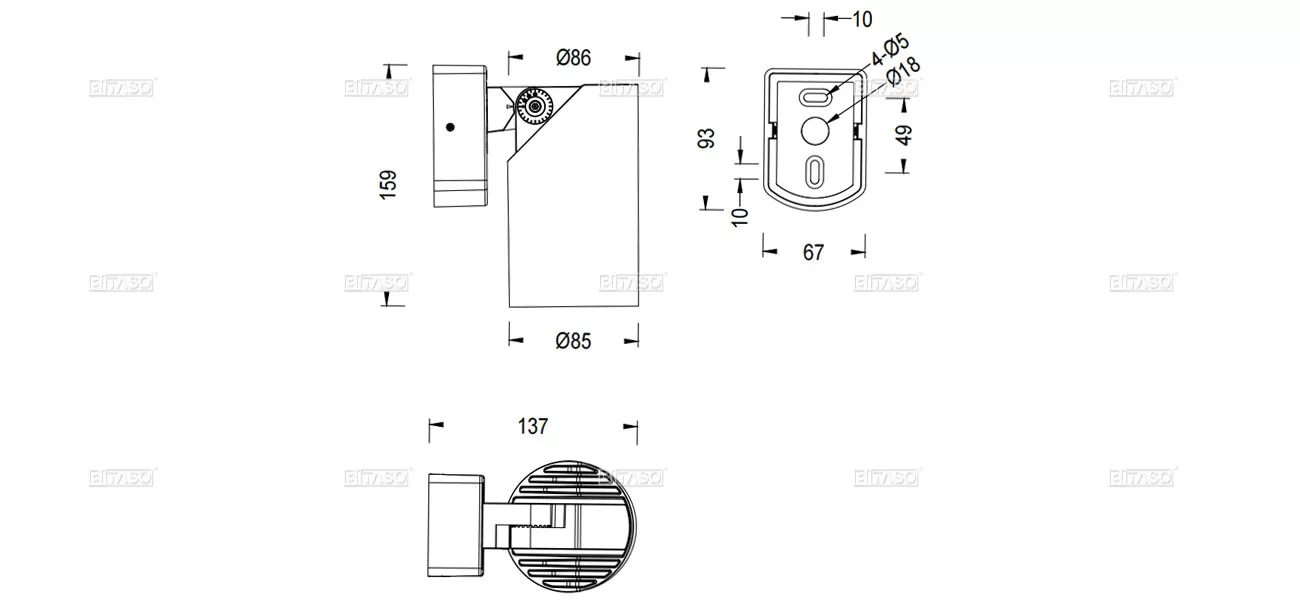

LUMINAIRE DIMENSION

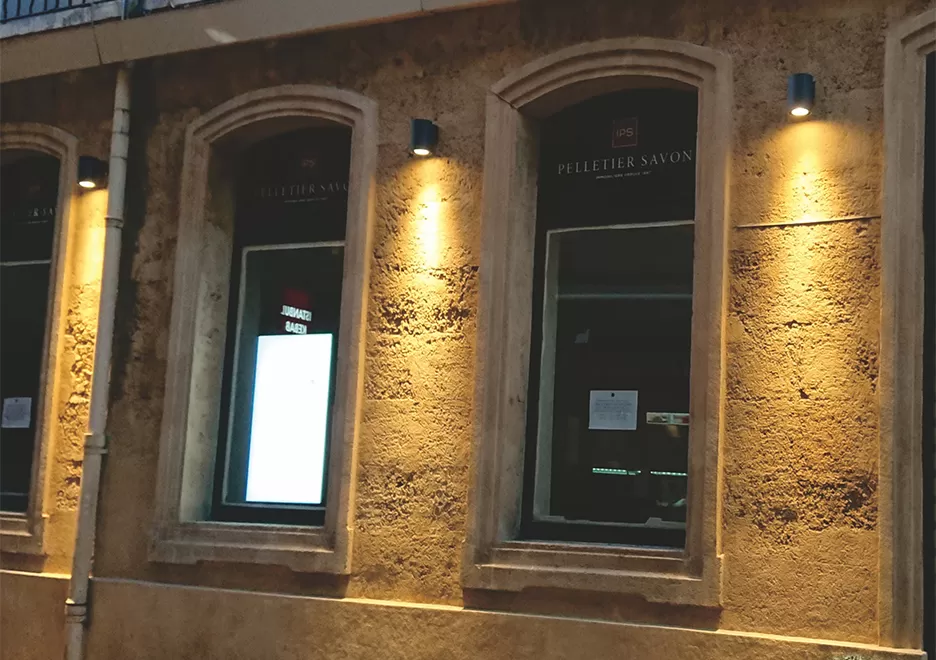

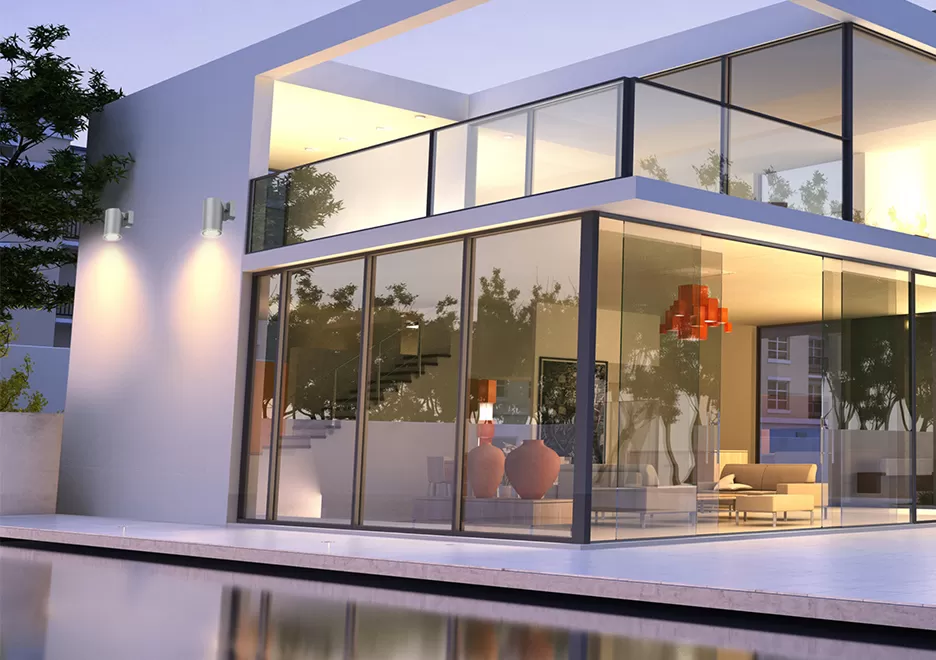

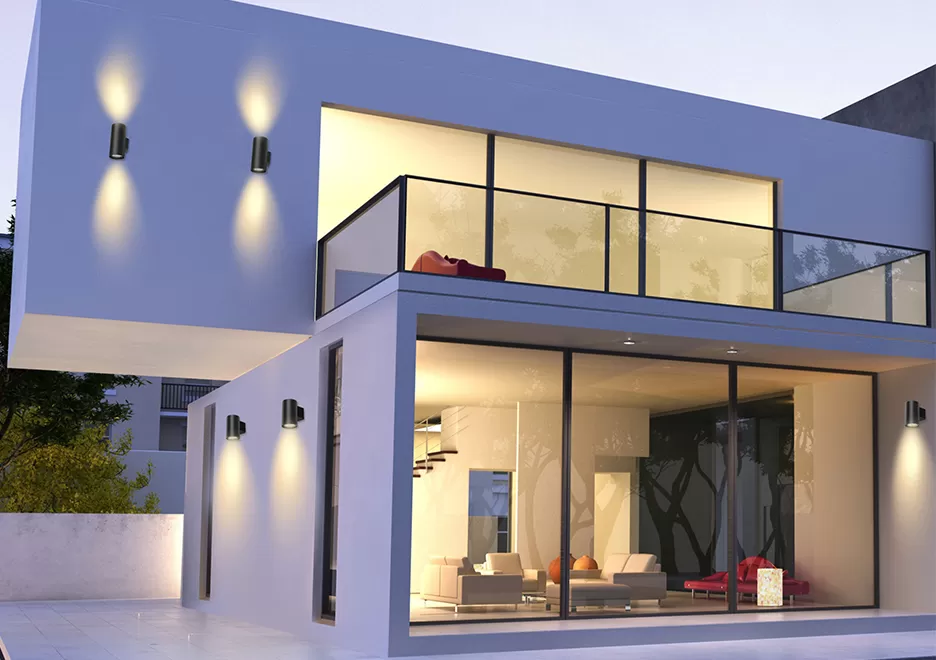

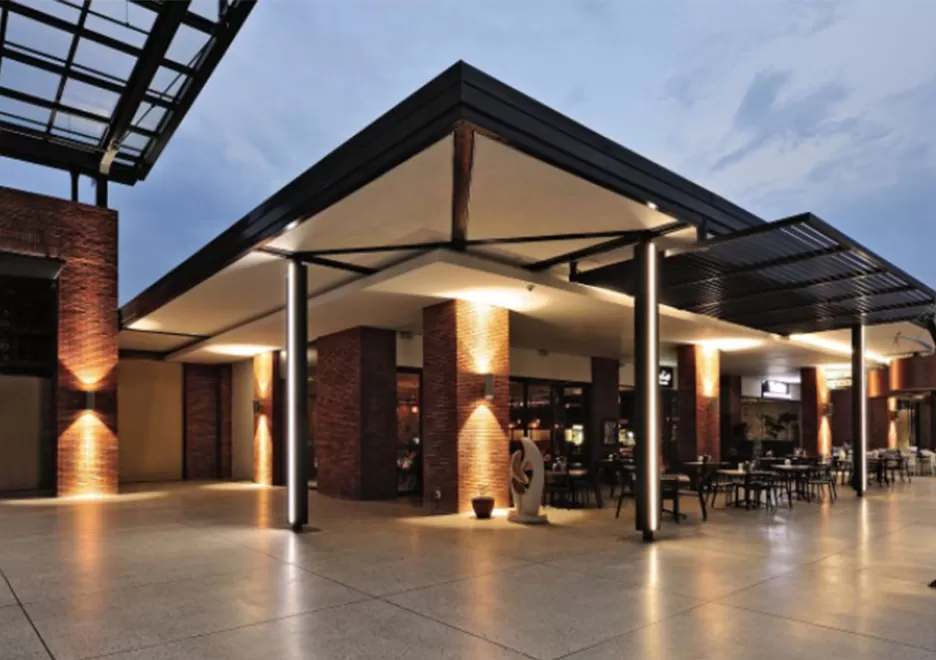

PROJECT REFERENCE
BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.
PROJECT REFERENCE
BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.
PROJECT REFERENCE
BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.
PROJECT REFERENCE
BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.
