Gemini Round shape BL-BO15012I

BITASO Led outdoor lawn pathway light with aluminum material, black/grey/brown finished color, IP65 weatherproof bollard lights. Bright and warm led landscape garden light, Customizable height, 9W/10W/12W yard luminaire. It can be widely used in garden, path, lawn, courtyard, patio, driveway, outdoor decoration. Let the 'darkness' have nowhere to hide.

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort compact architectural and stylish outdoor innovative luminaries for garden and path way.


ELECTRONICS

Power(Luminaire)

12W,50/60HZ

Power Factor

>0.9

Input Voltage

AC220-240V, 50/60Hz

Driver Option

Integral control gear

Dmming Type

ON/OFF, 0-10V, DALI, Triac, DMX512

Driver

Integral control gear

Optional Eectronic Accessories

Plug, Leading Cable, Connection Cable, Junction box

Connector

2/3/4/5 Pin





OPTICS

Light SourceSMDLumen (Luminaire):840LM
LED BrandPhilipsLuminaire Lminous Efficacy70LM/W
Full White LED(FW)3000KTunable White
Multi Color
CRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle120°


CONTROL SYSTEM

ControlON/OFF/DALI/0-10V/TriacCMS, CCSOptional


ENVIRONMENT

Operating Ta~-30 °C to 50 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingAluminum housing
ComplianceIK06CertificateIP65, CE, RoHS



LIGHT DISTRIBUTION

MECHANICS

Dimension∅150x800mmOther Dimensions
Material Thickness3.0 AluminumPlate Size
FinishRAL9004,RAL9006,RAL9007,RAL9016Housing Fixture MaterialAluminum


OPTIONAL ACCESSORIES

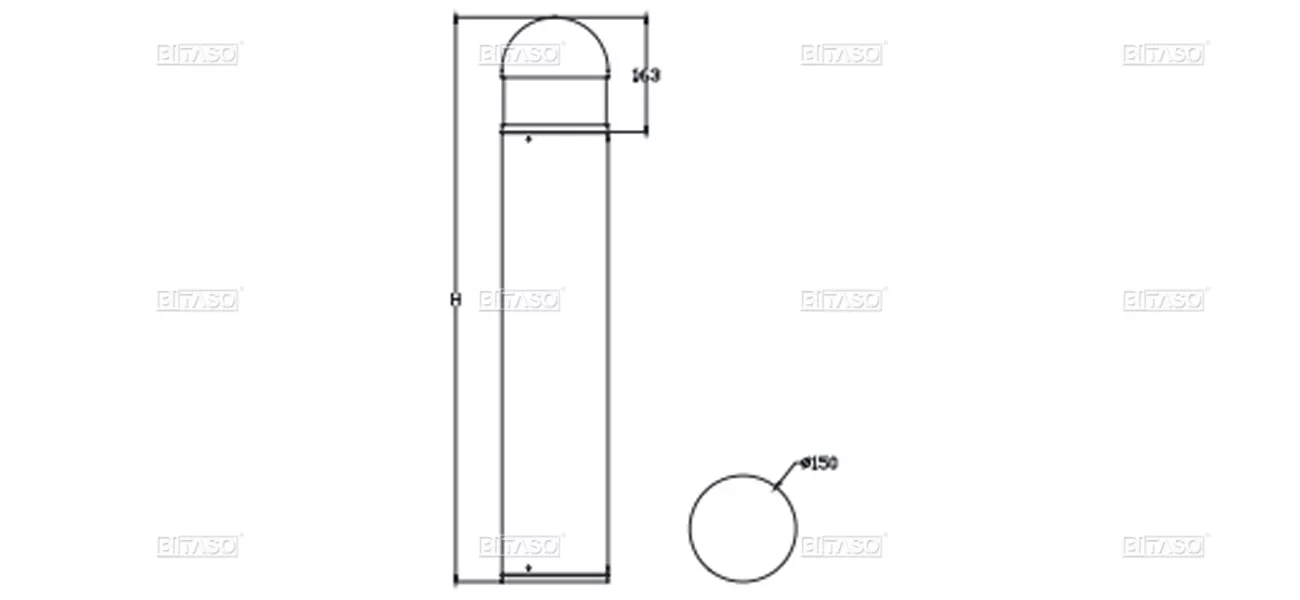

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on  independent technology innovation of new models design.
