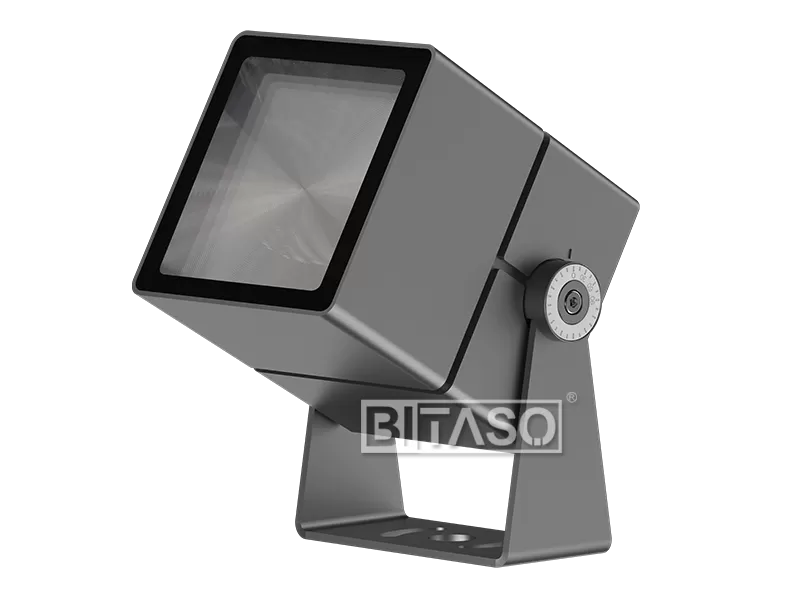

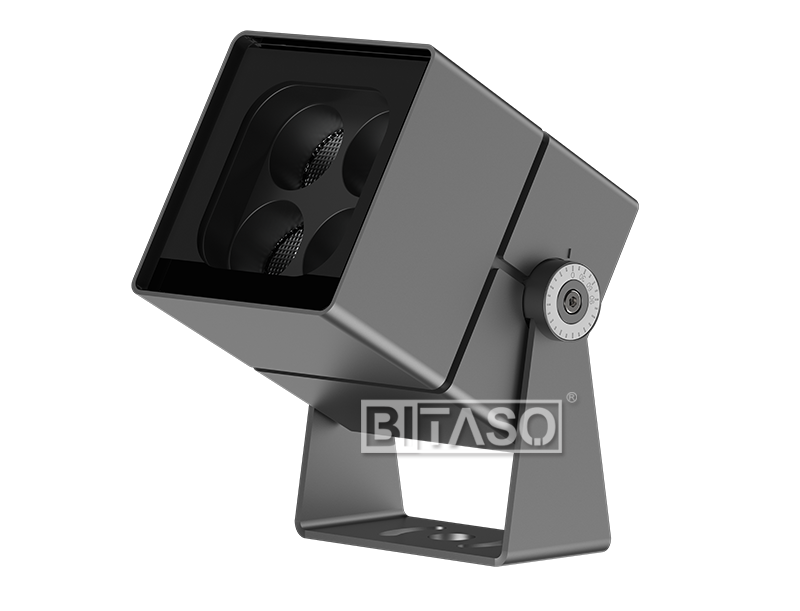

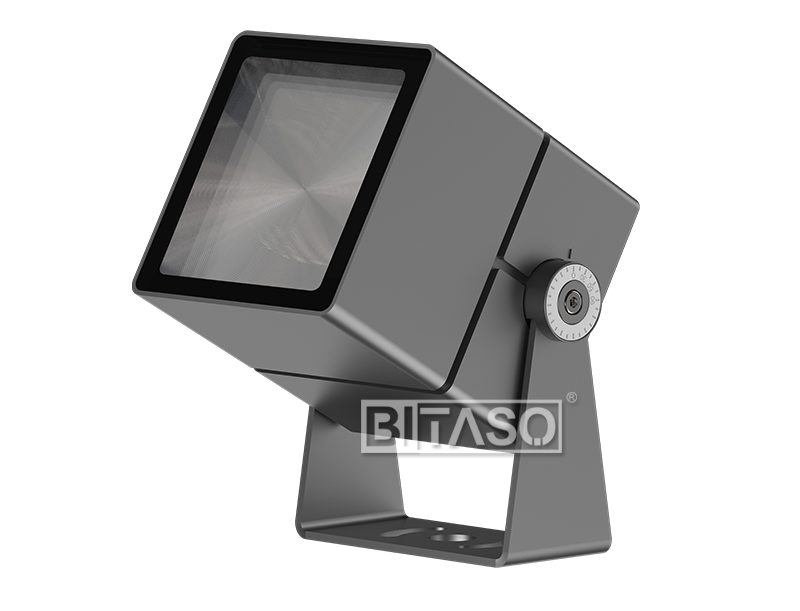

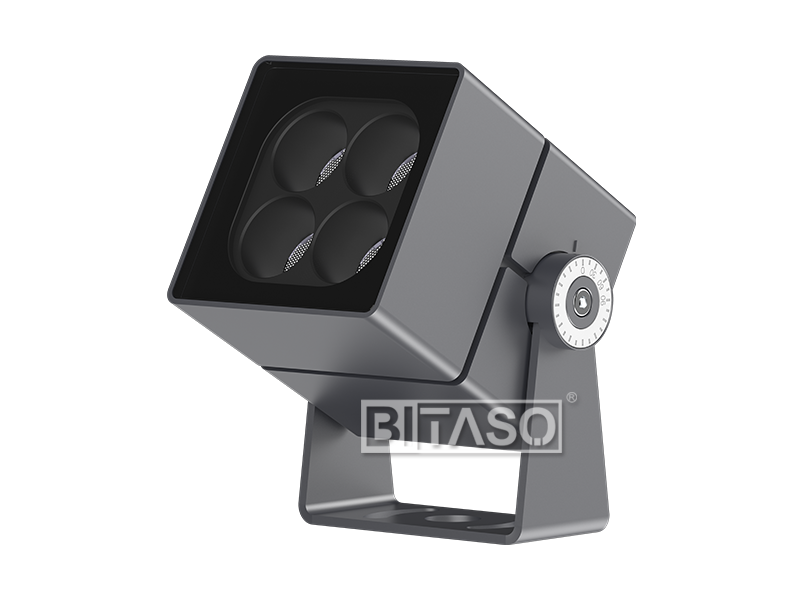

Corrosion-resistant ADC12# die-casting luminium body gives the luminaire good thermal conductivity, and large area connections between the rear of the housing and the led's PCB ensure good heat conduction.
Stainless steel screws, high strength 4mm toughened glass ＞92% light transmittance, extremely narrow to wide beam options, rotationally symmetric light.
ELECTRONICS
| Power(Luminaire) | 10-12W/15-20W | Power Factor | >0.9 |
| Input Voltage | DC12V DC24V DC36V DC48V AC110-240V 50/60Hz | Driver Option | Integral control gear |
| Dmming Type | ON/OFF, 0-10V, DALI, DMX512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | 1PCS SMD | Lumen（Luminaire): | 225LM, 90LM-450LM, 540LM-810LM |
| LED Brand | CREE/TYANSHINE SMD | Luminaire Lminous Efficacy | 90LM/W |
| Full White LED(FW) | 2700K/3000K/3500K/4000K/5000K | Tunable White | 2700K/6500K |
| Multi Color | Green, Red, Blue, Yellow, Amber, RGB, RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | Fresnel Lens 1°,3° |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Cuboid hood Angle25°, Cuboid hood |
CONTROL SYSTEM
| Control | ON/OFF, 0-10V, DALI, DMX512 | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK08, IP66, Class I | Certificate | IP66, CE, ETL, RoHS, CCC |
LIGHT DISTRIBUTION
MECHANICS
| Dimension | 88x88x100mm | Weight | 1.55KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |
| Finish | Black/Grey/White | Mounting Type | Wall/Floor/Ground/Tree |
OPTIONAL ACCESSORIES
Cuboid Hood Angle25°
Cuboid Hood
M16 2_3PIN IP68 Connector
20T-2_3_4PIN IP68 Connector

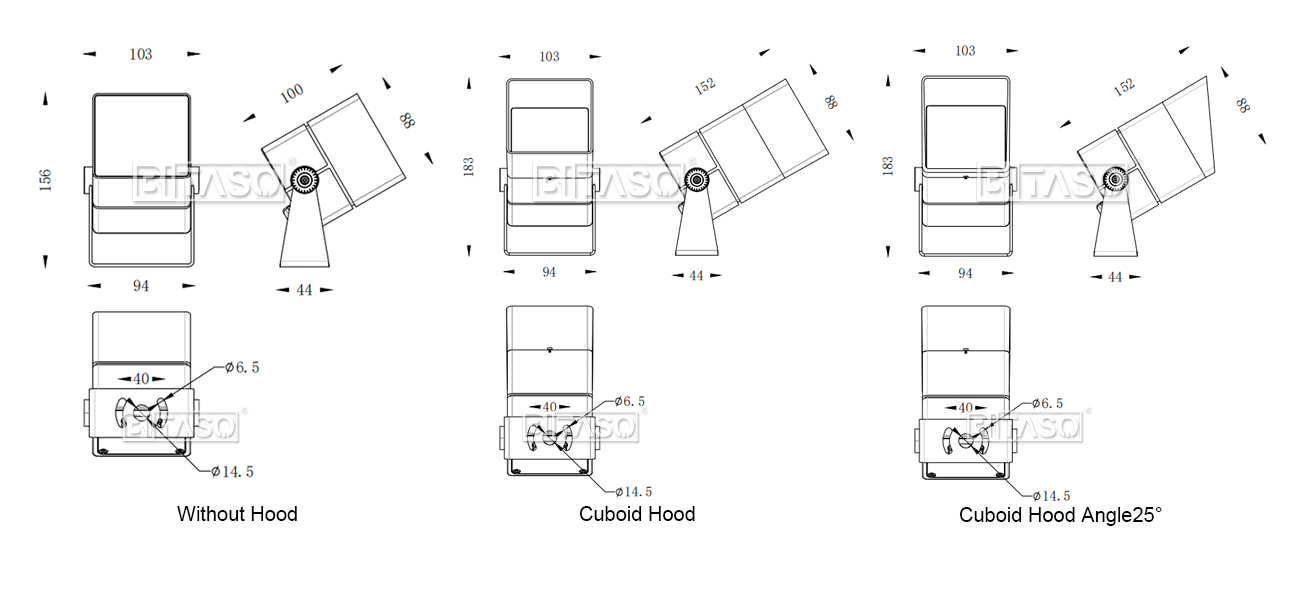

LUMINAIRE DIMENSION

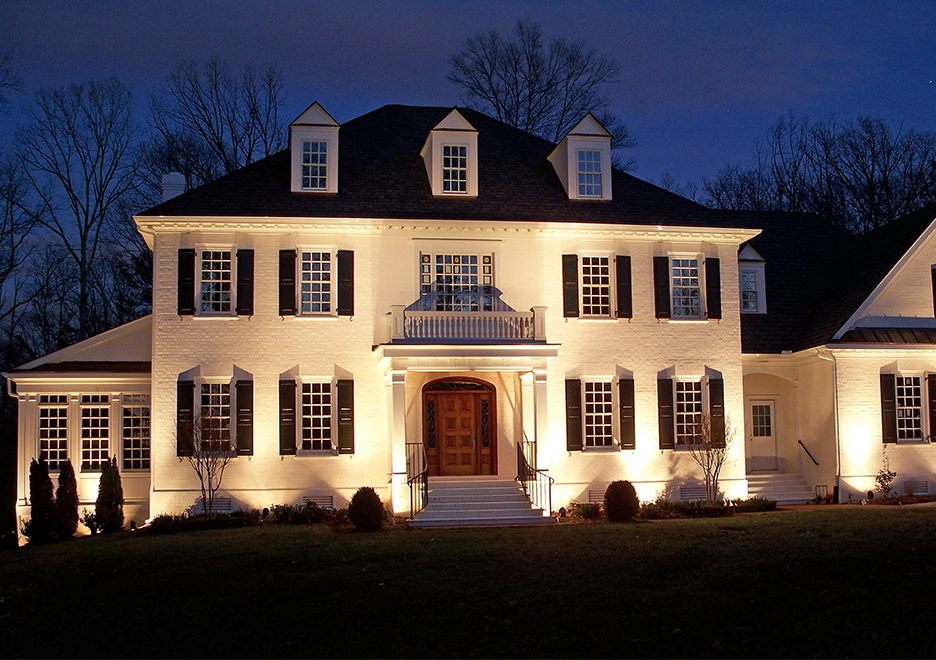

PROJECT REFERENCE
BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.

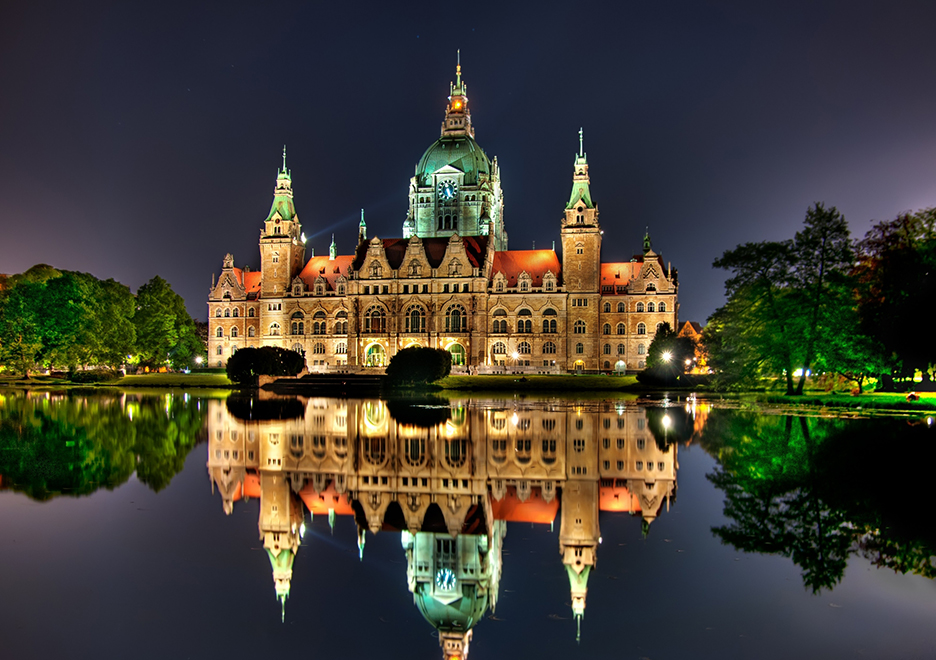

PROJECT REFERENCE
BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.

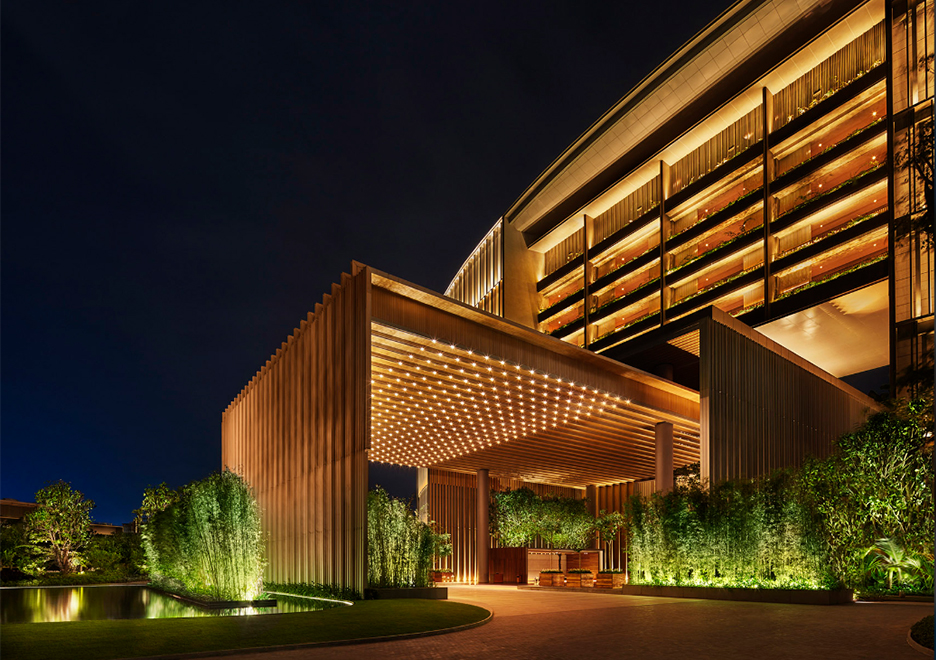

PROJECT REFERENCE
BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.

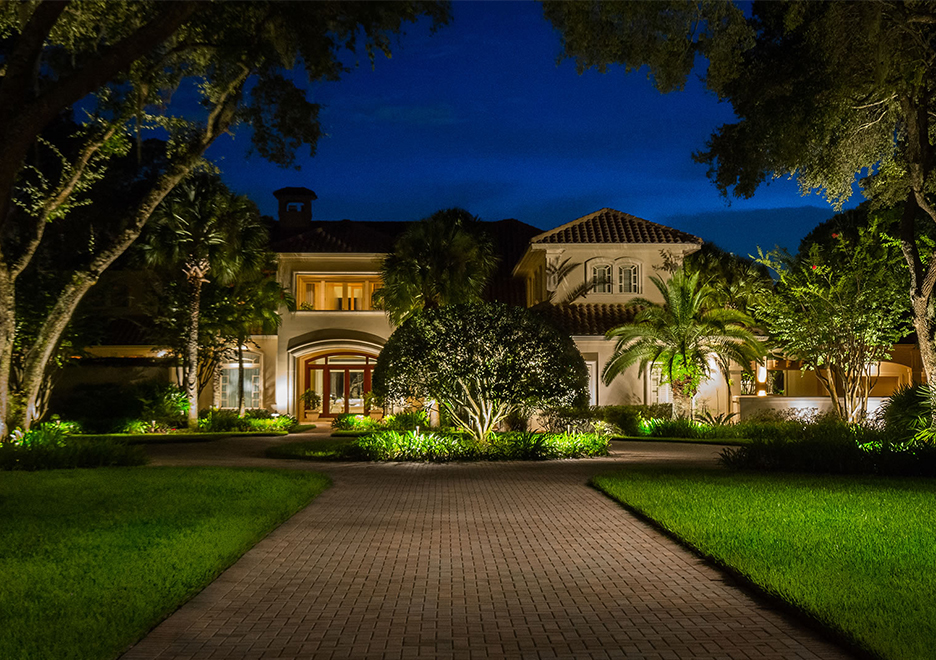

PROJECT REFERENCE
BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.
