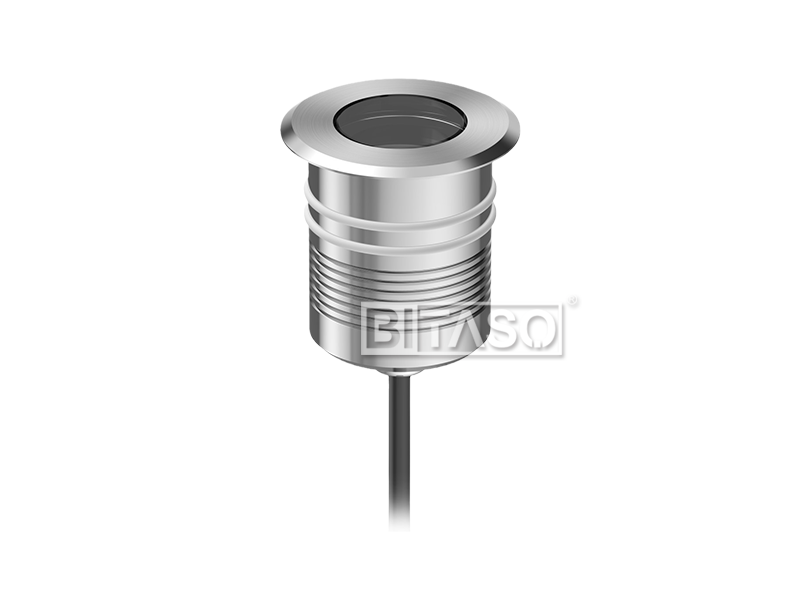

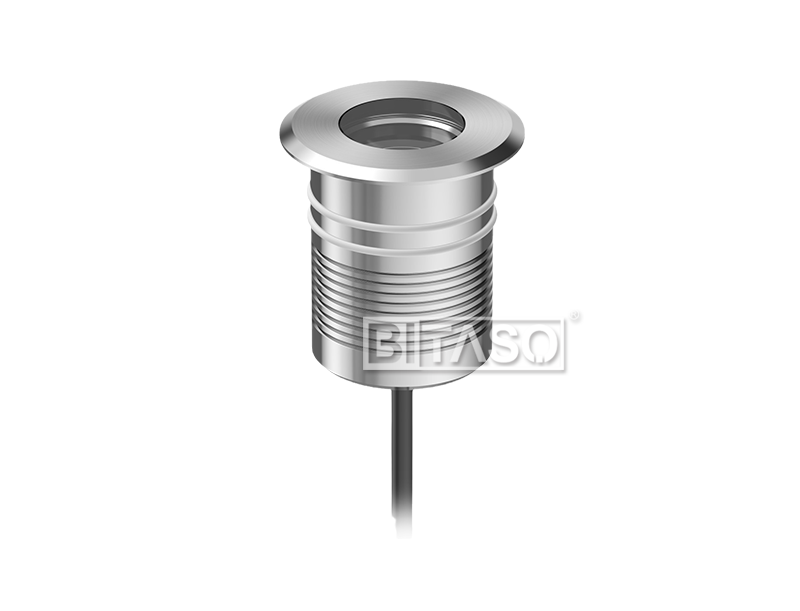

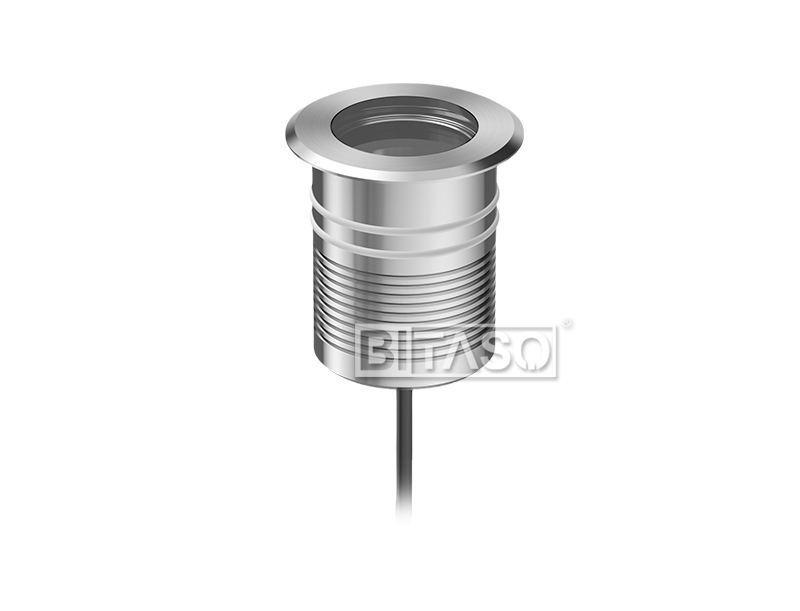

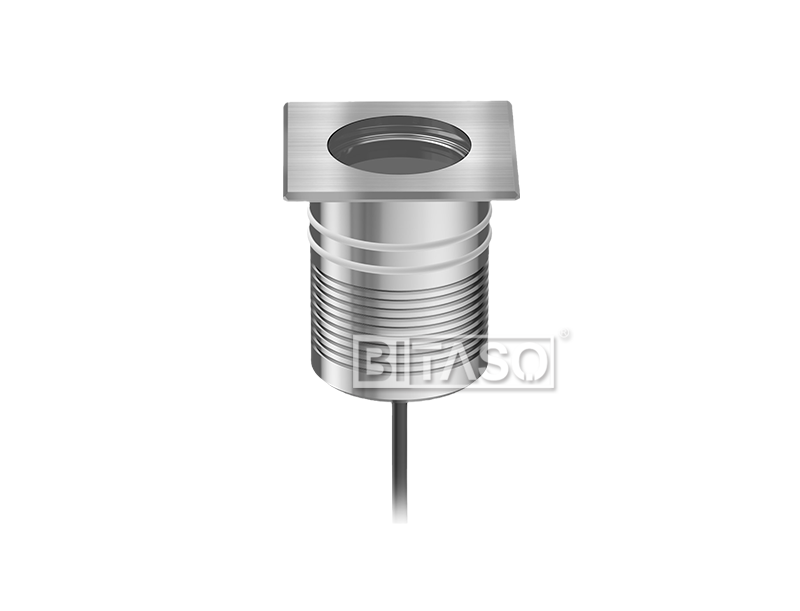

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Compact architectural and stylish outdoor innovative projector for variety of floodlighting applications,ideal for illuminating large buildings and objects.Large area connectiongs between the rear of the housing and the LED S PCB ensure good heat conduction.
ELECTRONICS
| Power(Luminaire) | 3-5W | Power Factor | >0.9, CCS auto calibrating |
| Input Voltage | DC12V DC24V DC36V DC48V 50/60Hz | Driver Option | Integral control gear |
| Dmming Type | ON/OFF, 0-10V, DALI, Triac, DMX512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 8 pin power+DMX integrated cable |
OPTICS
| Light Source | 1PCS COB | Lumen (Luminaire): | 1200LM |
| LED Brand | CREE/LUMINUS COB | Luminaire Lminous Efficacy | 72LM/W, 90LM/W, 90LM-135LM/W |
| Full White LED(FW) | 2200K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500K | Turnable White | 3000K-6500K |
| Multi Color | RGB, RGBW | CRI | 6°, 20°, 40° |
| LED Life Span | ≥50, 000hrs | Beam Agle | 12°, 25°, 38°, 15°, 40°, 60°, etc. |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Diffuser, Filter, Honeycomb Louver |
CONTROL SYSTEM
| Control | DMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment) | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | CNC Stainless steel SUS316L |
| Compliance | IK08, IP68, Class I | Certificate | IP68, CE, ETL, RoHS, CCC |

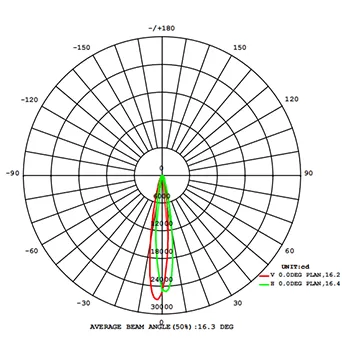

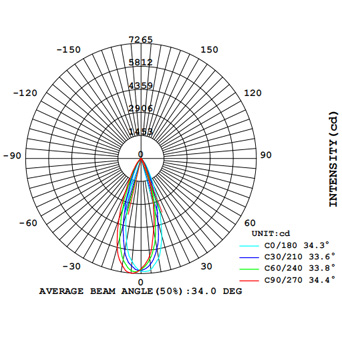

LIGHT DISTRIBUTION
MECHANICS
| Dimension | 64x74mm | Weight | 1.55KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | CNC Stainless steel SUS316L |
| Finish | TIGER PODER gray(RAL9006), black(RAL9005) | Mounting Type | Floor or underwater |

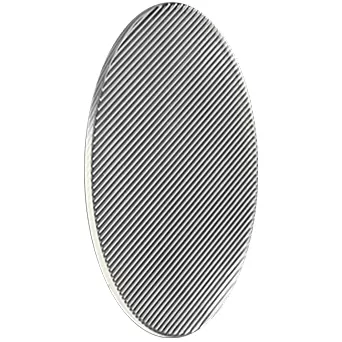

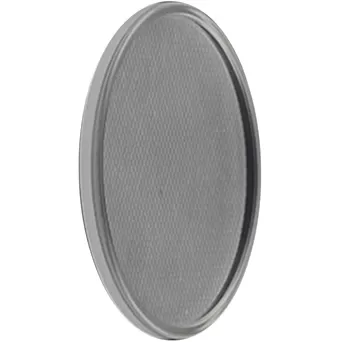

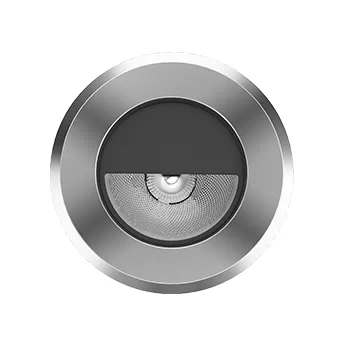

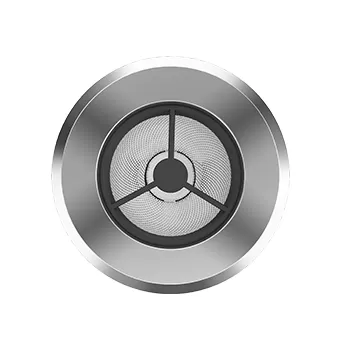

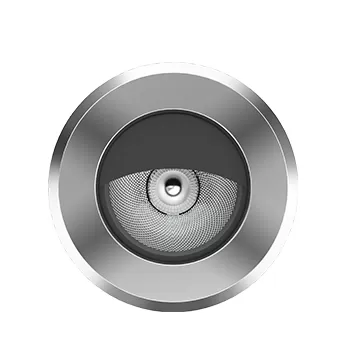

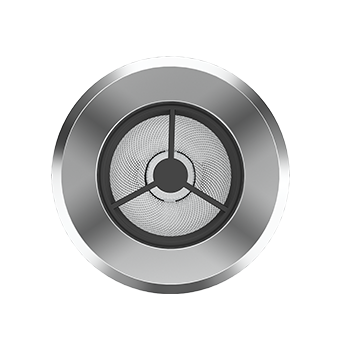

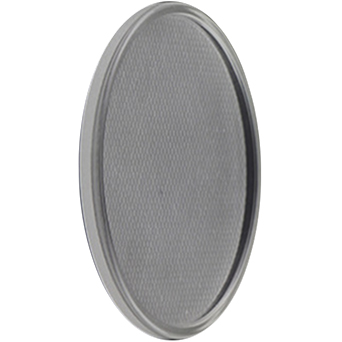

OPTIONAL ACCESSORIES

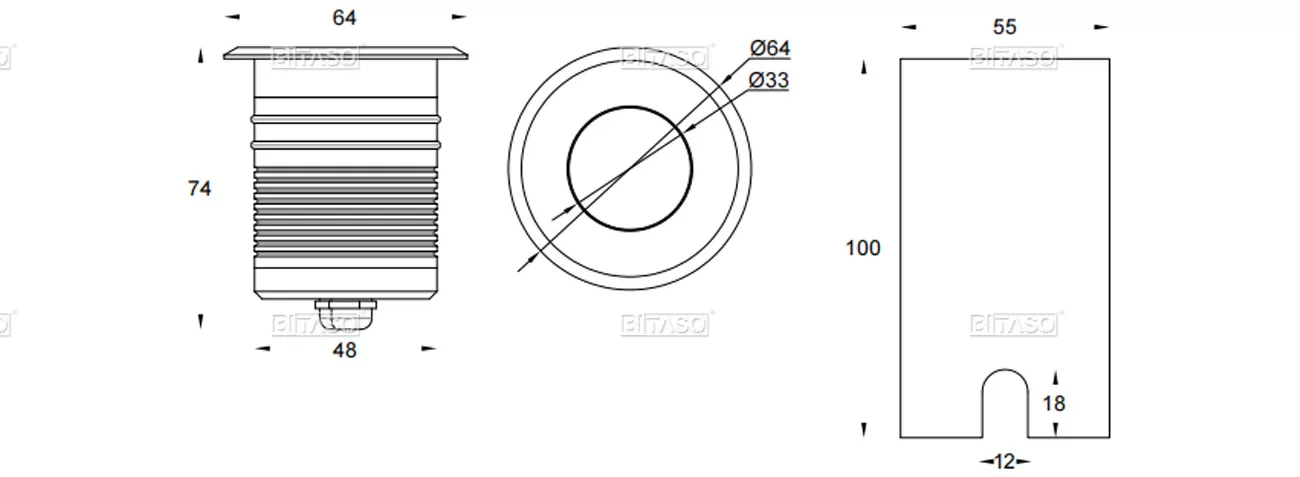

LUMINAIRE DIMENSION

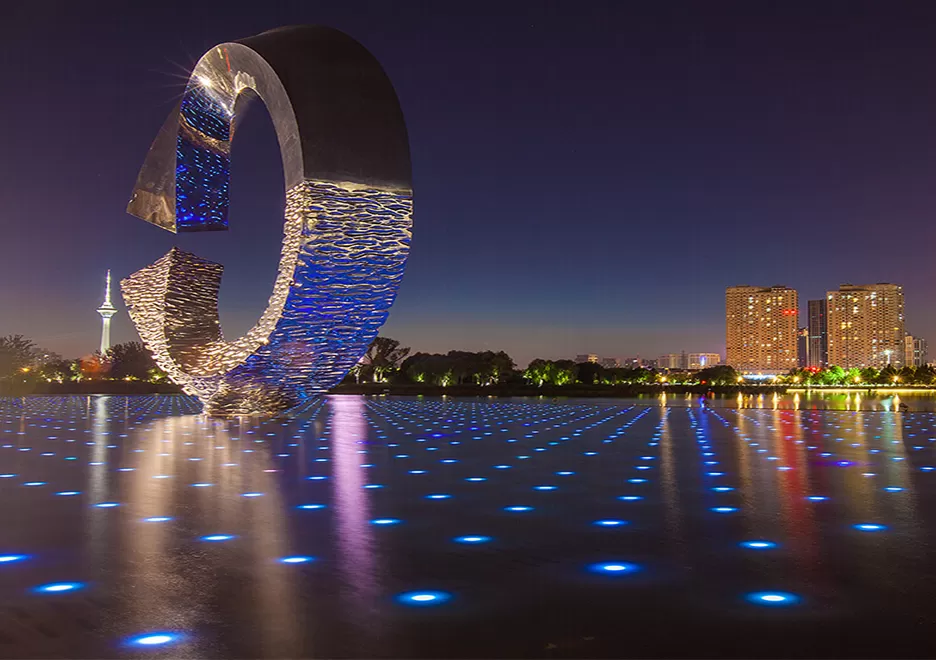

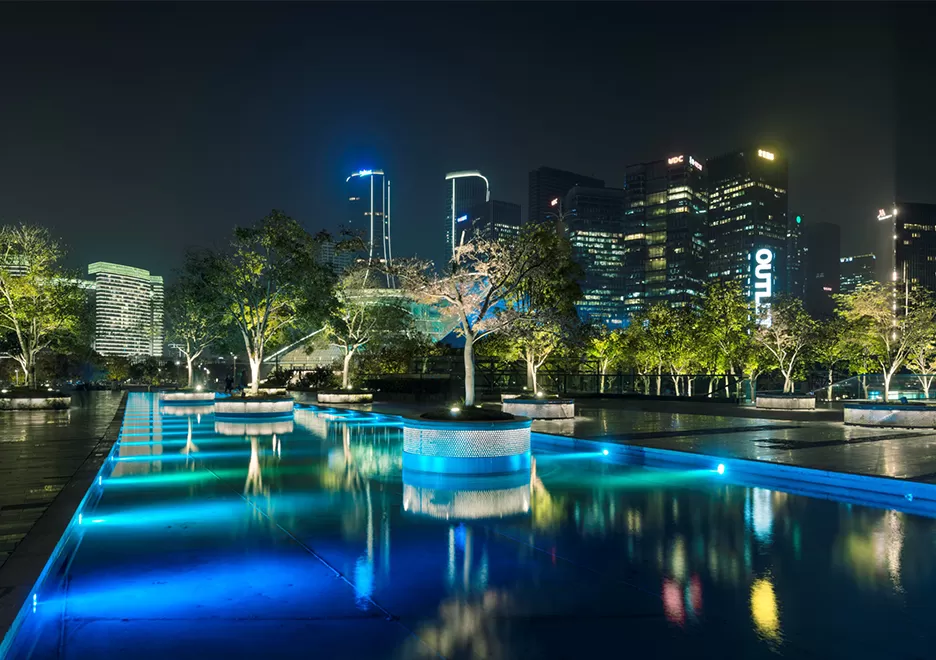

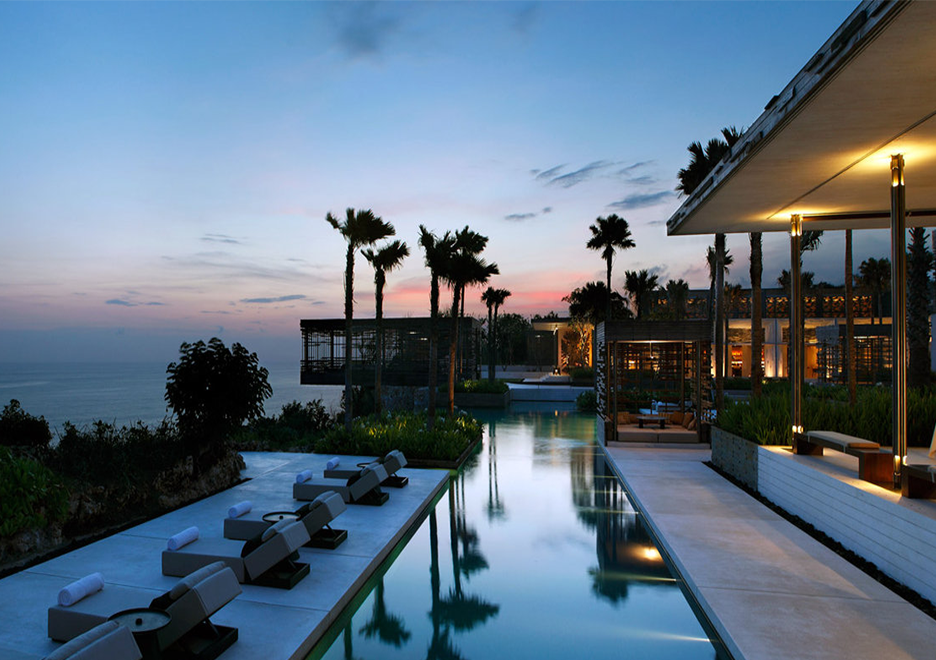

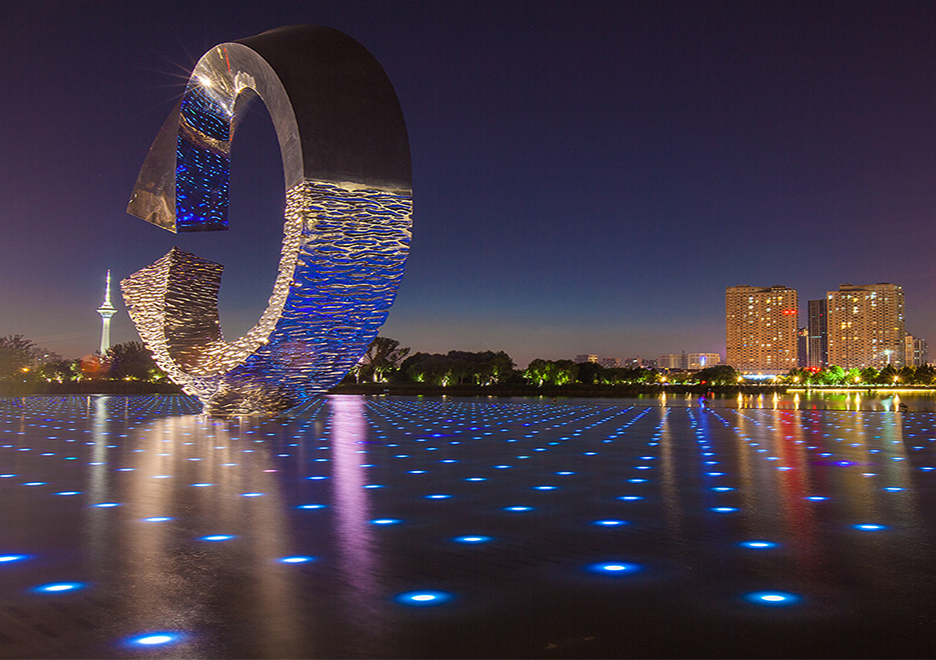

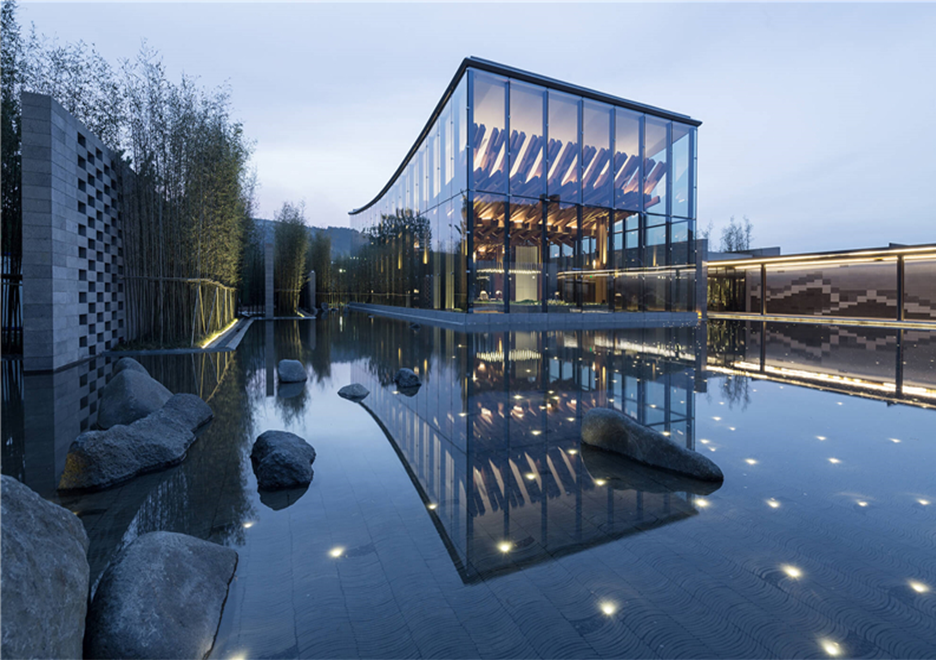

PROJECT REFERENCE
PROJECT REFERENCE
PROJECT REFERENCE
PROJECT REFERENCE

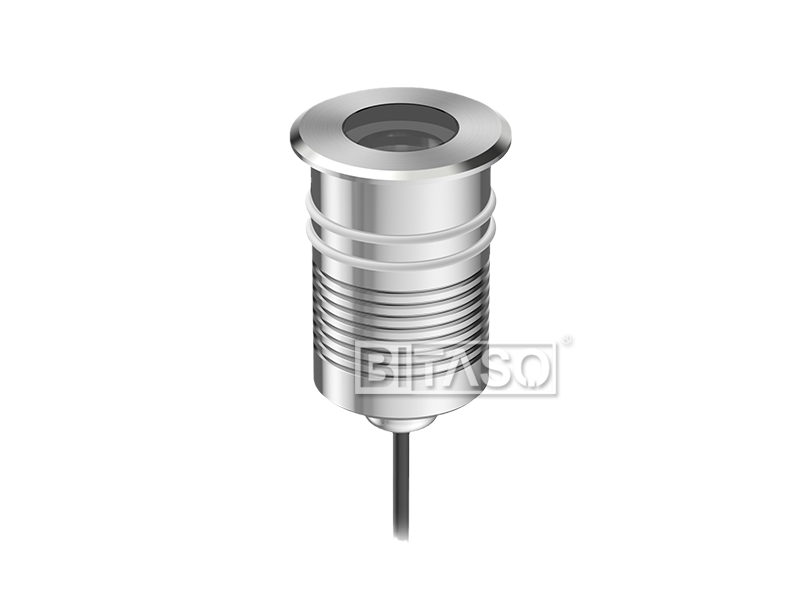

Related Products
