Diamond D75

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Descreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,floodlighting and wall washing in the outdoor area.Installation on floor(with mouting sleeve) and ground(with or without mounting sleeve).Stainless steel screws,High strength 4MM toughened glass>92% light transmittance,extremely narrow to wide beam options,rotationally symmetric light.

ELECTRONICS

Power(Luminaire)1W/1.5W/2WPower Factor>0.9, CCS auto calibrating
Input VoltageDC12V DC24V DC36V DC48V AC110-240V 50/60HzDriver OptionIntegral control gear
Dimming TypeON/OFF, 0-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector8 pin power+DMX integrated cable



OPTICS

Light Source1PCS SMDLumen (Luminaire):100LM
LED BrandCREE /OSRAM/TUANSHINELuminaire Lminous Efficacy90-100LM/W
Full White LED(FW)2200K/2700K/3000K/3500K/4000K/5000K/5700K/6500KTurnable White2700K-6500K
Multi ColorRGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Agle12°,25°,40°,60° etc.
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesDiffuser, Filter, Honeycomb Louver, Three Fork Light Baffle Plate, Crescent Baffle Plate, Double Crescent Baffle Plate, Half Moonbaffle Plate,



CONTROL SYSTEM

ControlDMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment)DMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK08, IP67, Class ICertificateIP67, CE, ETL, RoHS, CCC



MECHANICS

DimensionΦ75*H55mmWeight1.0KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishStainless steel SUS316Mounting TypeOutdoor lighting for squares, outdoor parks, leisure places, etc

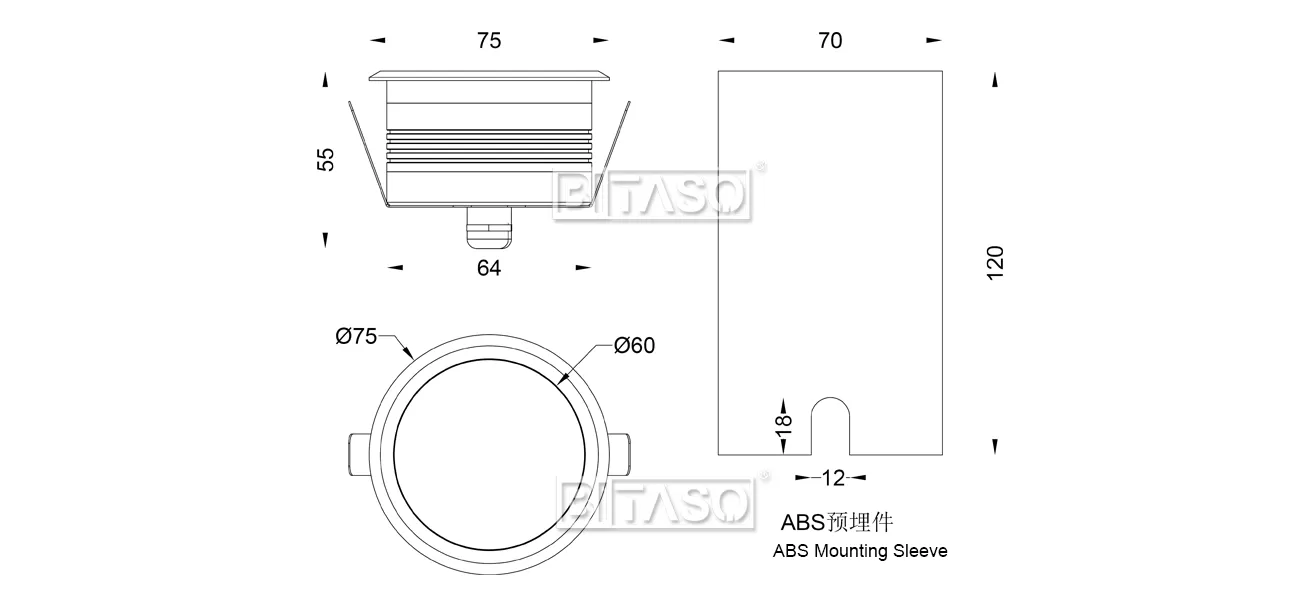

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION
