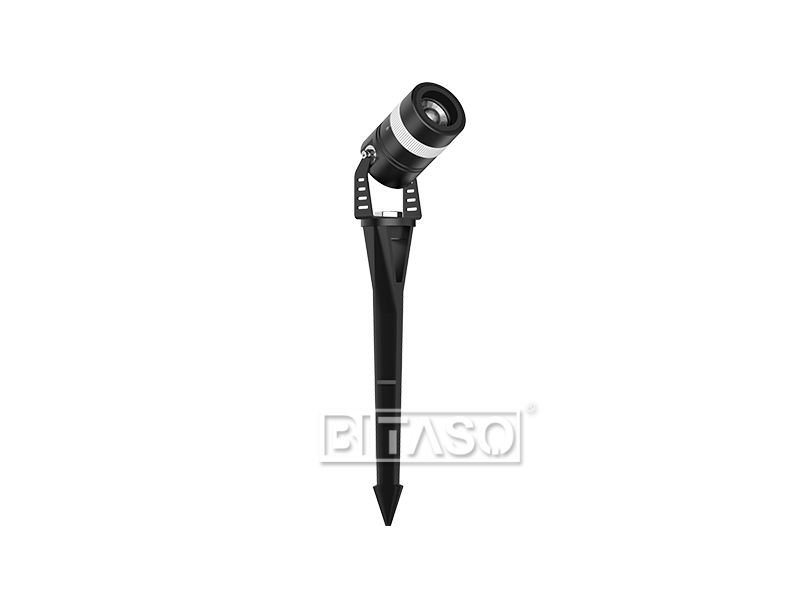

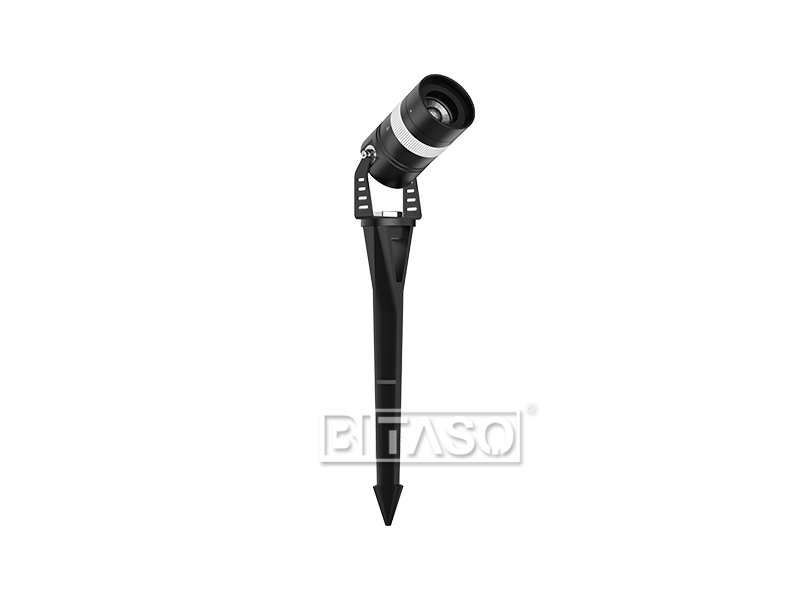

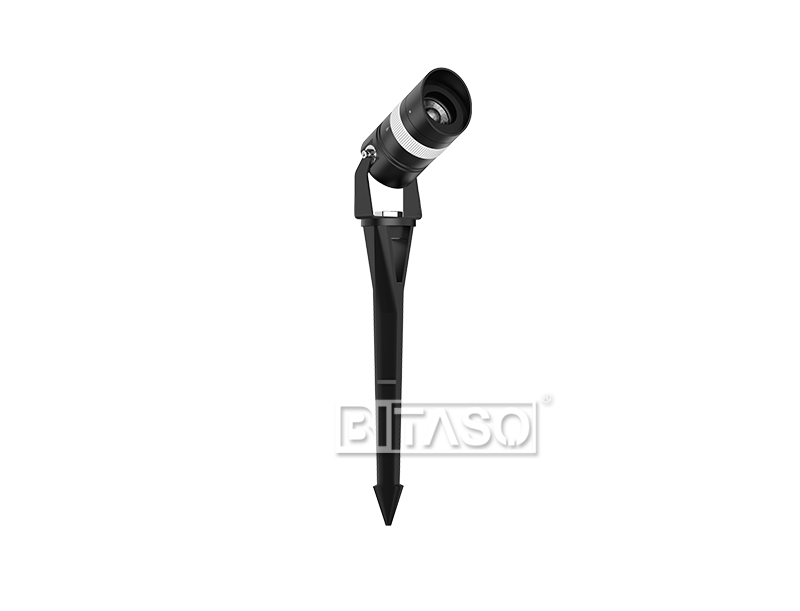

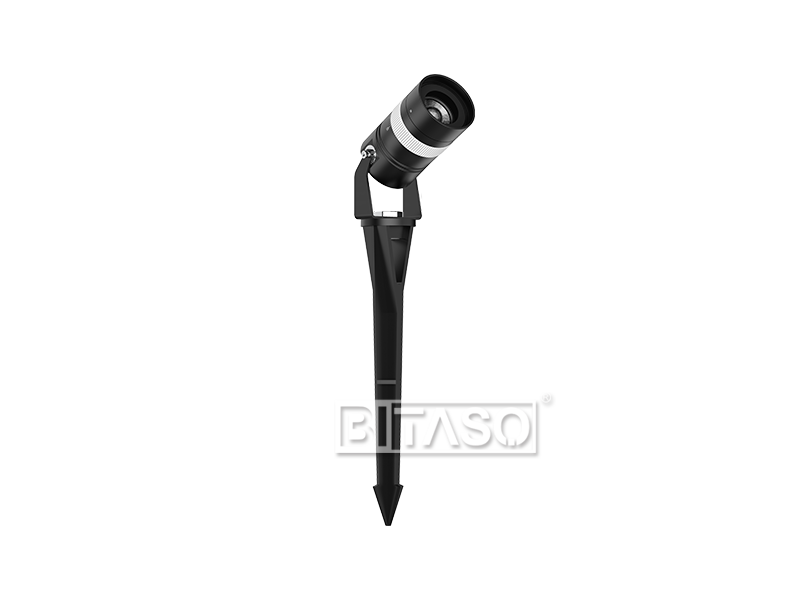

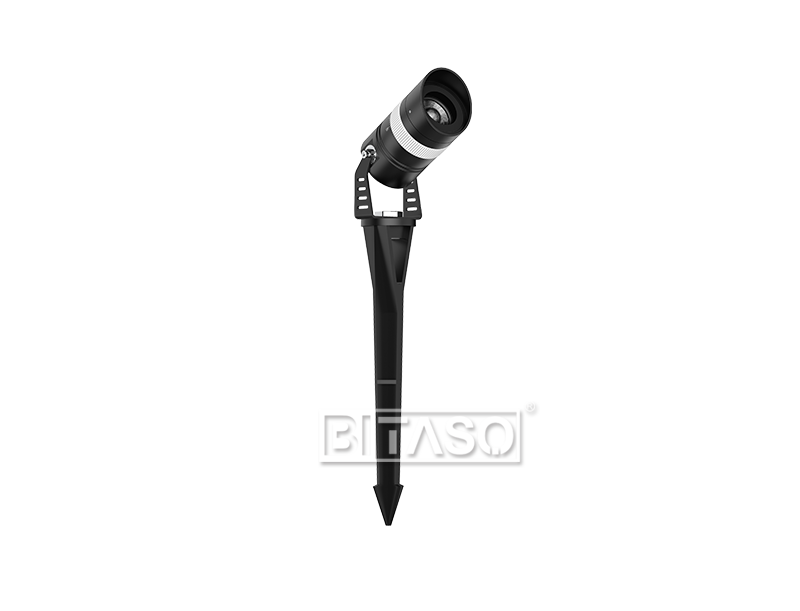

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,flood lighting and wall washing in the outdoor area.
ELECTRONICS
| Power(Luminaire) | 4-7W | Power Factor | >0.9 |
| Input Voltage | DC24 DC36V DC48V AC110-240V 50/60Hz | Driver Option | Integral control gear |
| Dmming Type | DXM512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | 1PCS SMD | Lumen（Luminaire): | 240/560LM |
| LED Brand | CREE SMD | Luminaire Lminous Efficacy | 80LM/W |
| Full White LED(FW) | 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500K | Turnable White | |
| Multi Color | CRI | Ra>85, Ra>90 | |
| LED Life Span | ≥50,000hrs | Beam Agle | 20-60° |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Crylindrical Hood Angle 45°, Crylindrical Hood,Honeycomb Louver |
CONTROL SYSTEM
| Control | DMX512 | DMX Channel | FW (1ch), TW (2chs ) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | CNC 6063#aluminum housing |
| Compliance | IK08, IP66, Class I | Certificate | IP66, CE, ETL, RoHS, CCC |
LIGHT DISTRIBUTION
LYMO D55 SMD AVERAGE BEAM ANGLE(50%).12°
LYMO D55 SMD AVERAGE BEAM ANGLE(50%).25°
LYMO D55 SMD AVERAGE BEAM ANGLE(50%).30°
LYMO D55 SMD AVERAGE BEAM ANGLE(50%).40°
MECHANICS
| Dimension | 55*85*380mm | Weight | 0.78KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | CNC 6063#aluminum housing |
| Finish | Matt silver/black anodized Finsh or powder coated | Mounting Type | U brackert&mounting plate for solid ground, prike for soft ground |
OPTIONAL ACCESSORIES
20T-2_3_4PIN IP68 Connector
Honeycomb Louver
M16 2_3PIN IP68 Connector
Crylindrical Hood Angle 45°
Crylindrical Hood Angle 45°

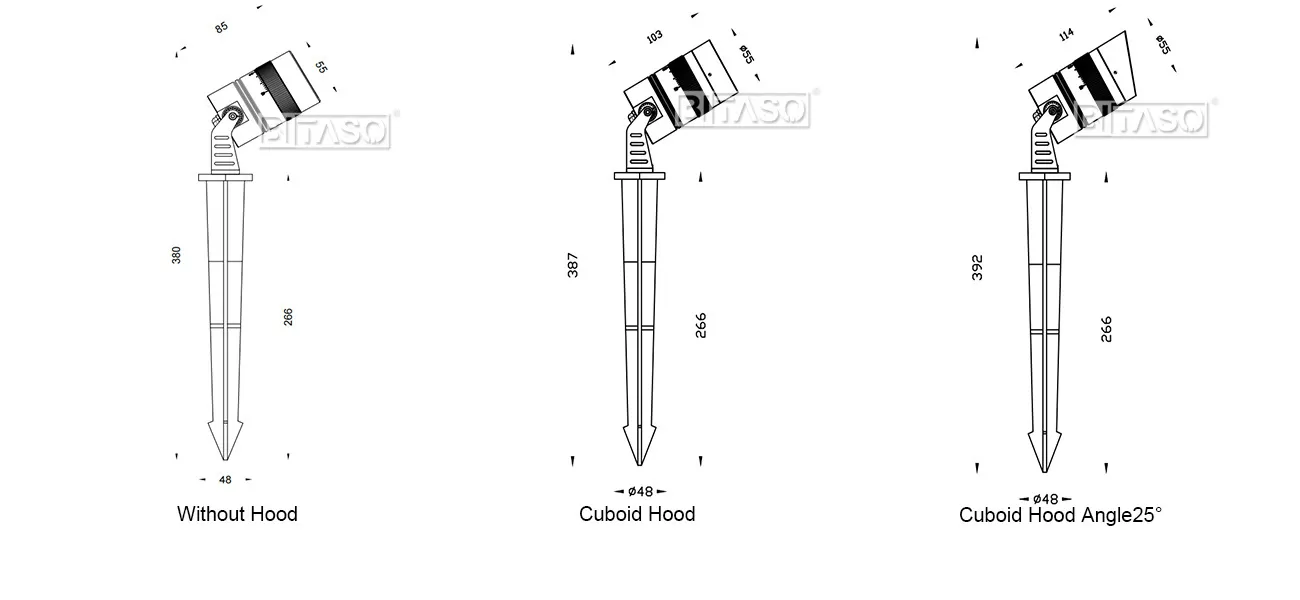

LUMINAIRE DIMENSION
