The LED Linear lights are designed and engineered to enhance the beauty of poolscapes, water features, and other outdoor projects where a fixture is required to operate in water at a low voltage.
ELECTRONICS
| Power(Luminaire) | 20W | Power Factor | >0.9 |
| Input Voltage | DC24V | Driver Option | External Power Supply Required |
| Dmming Type | ON/OFF, 1-10V, DALI, Triac, DMX512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | SMD | Lumen（Luminaire): | 1800LM |
| LED Brand | HONGLI | Luminaire Lminous Efficacy | 90LM/W |
| Full White LED(FW) | 2500K-6000K | Tunable White | |
| Multi Color | RGW,RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | Without Aluminum housing 130° With Aluminum housing 110° |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories |
CONTROL SYSTEM
| Control | ON/OFF, 1-10V, DALI, Triac, DMX512 | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | Stainless steel SUS 316L# |
| Compliance | IK08, IP68, Class I | Certificate | IP68, CE, ETL, RoHS, CCC |
LIGHT DISTRIBUTION
MECHANICS
| Dimension | 1000x27.2x26.8mm | Weight | 0.65KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | Stainless steel SUS 316L# |
| Finish | Stainless Steel | Mounting Type | Underwater/Ground |
OPTIONAL ACCESSORIES
M16 2_3PIN IP68 Connector
20T-2_3_4PIN IP68 Connector

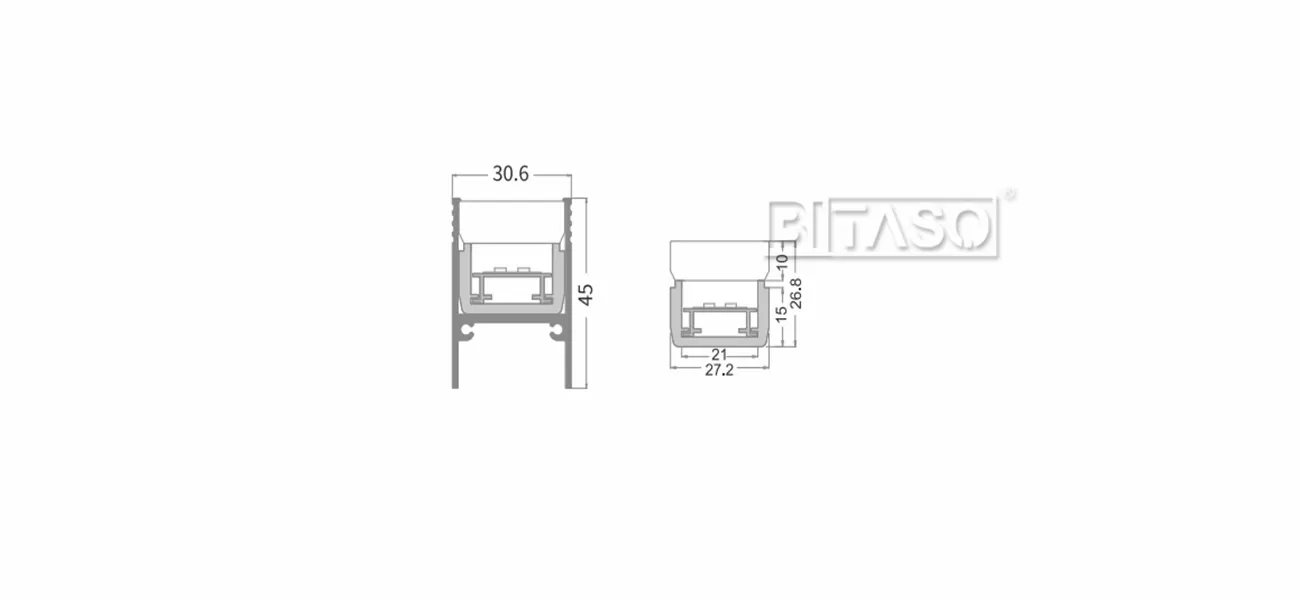

LUMINAIRE DIMENSION
PROJECT REFERENCE

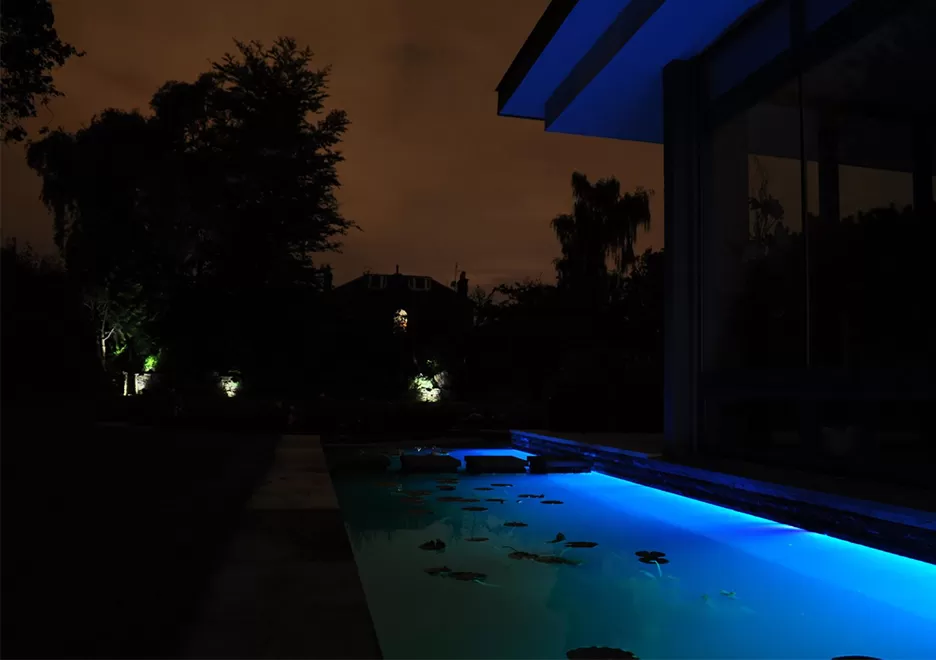

High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.
PROJECT REFERENCE

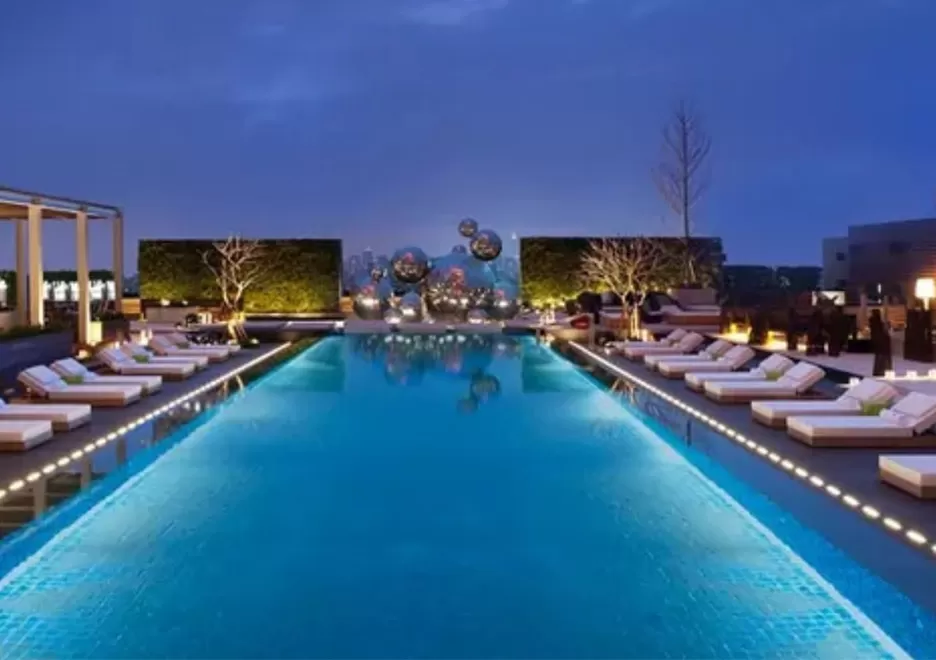

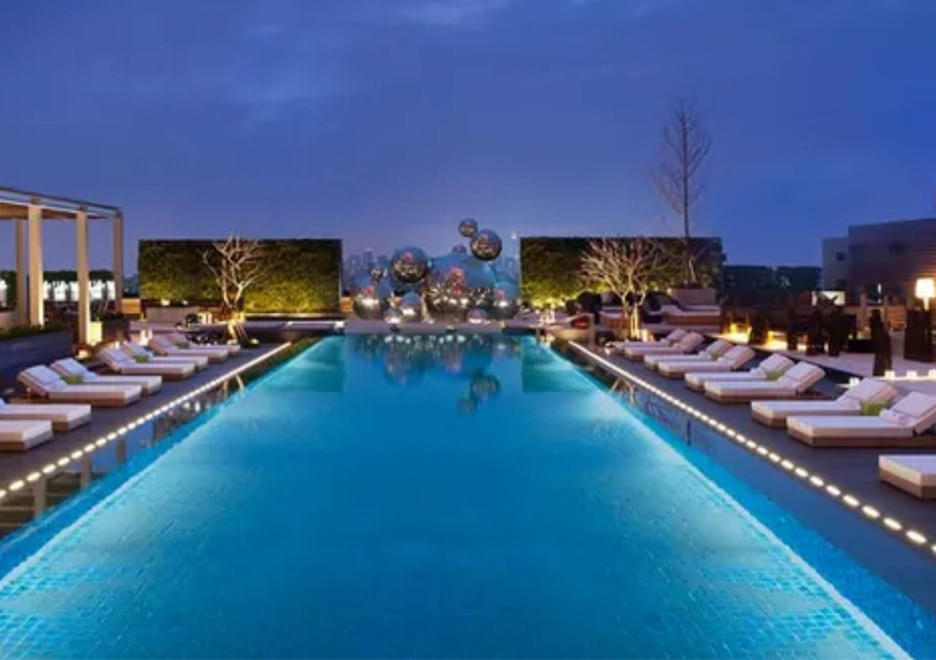

High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.
PROJECT REFERENCE

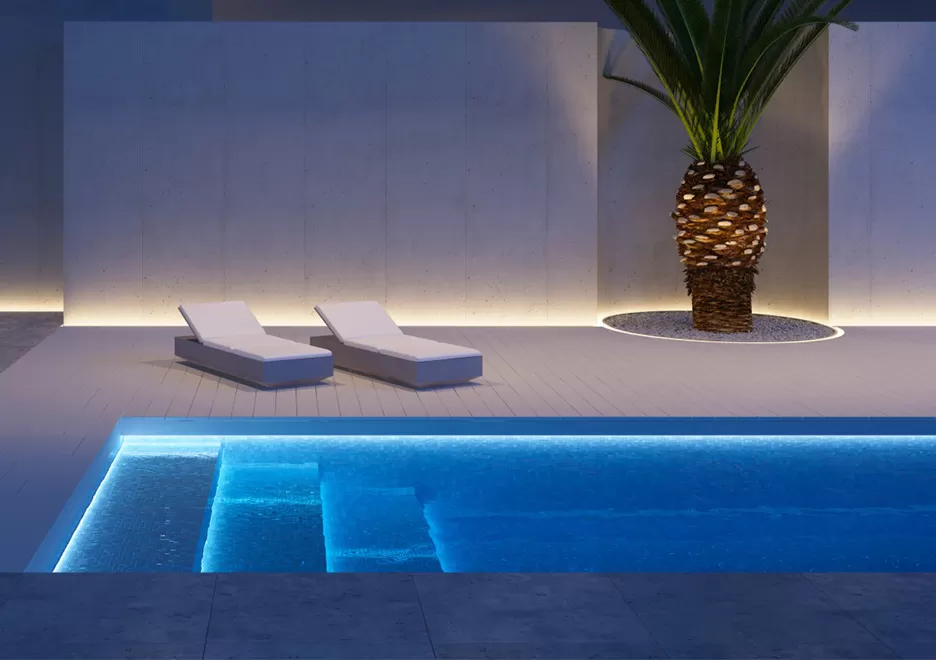

High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.
