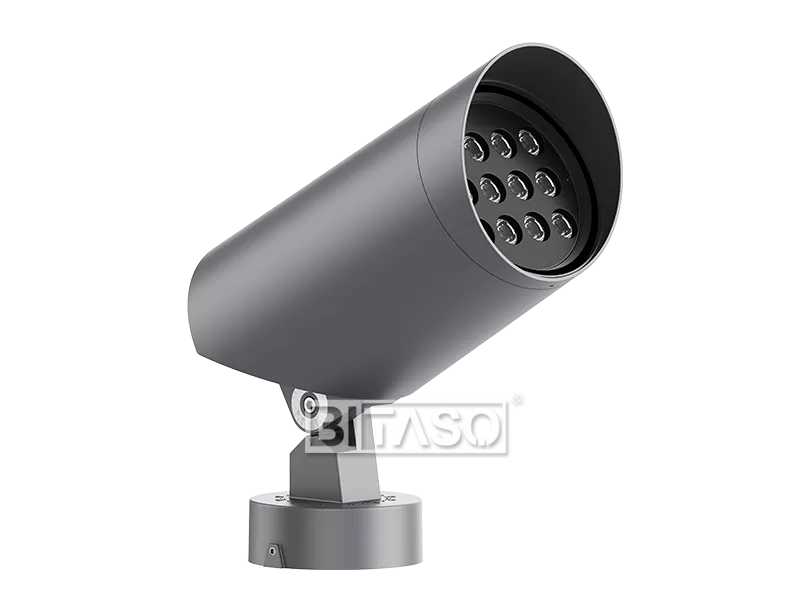

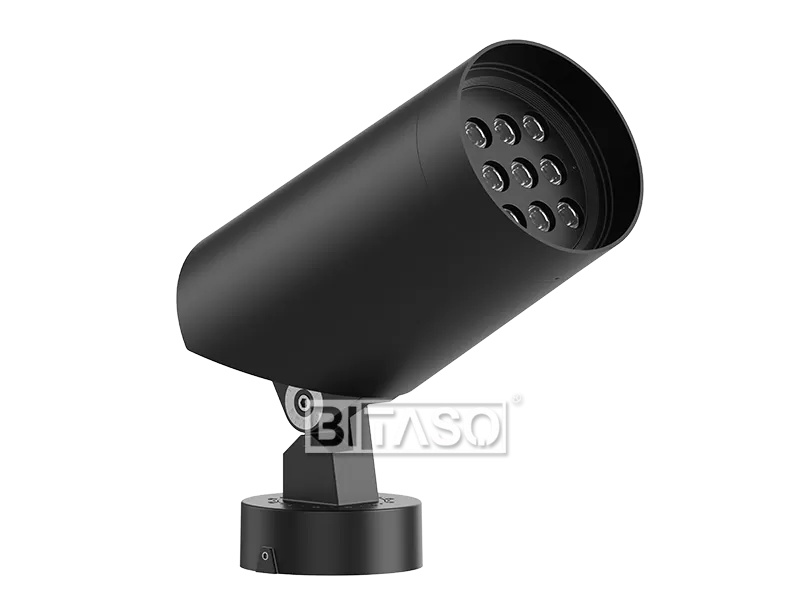

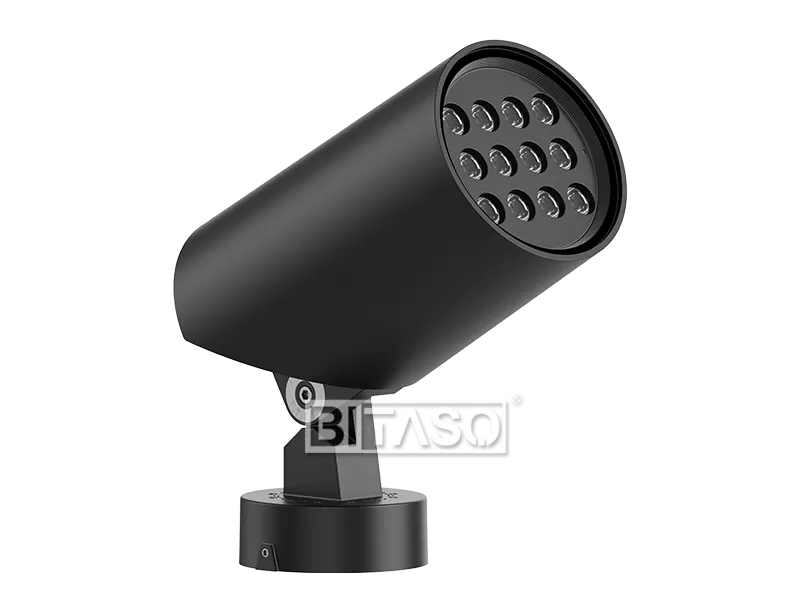

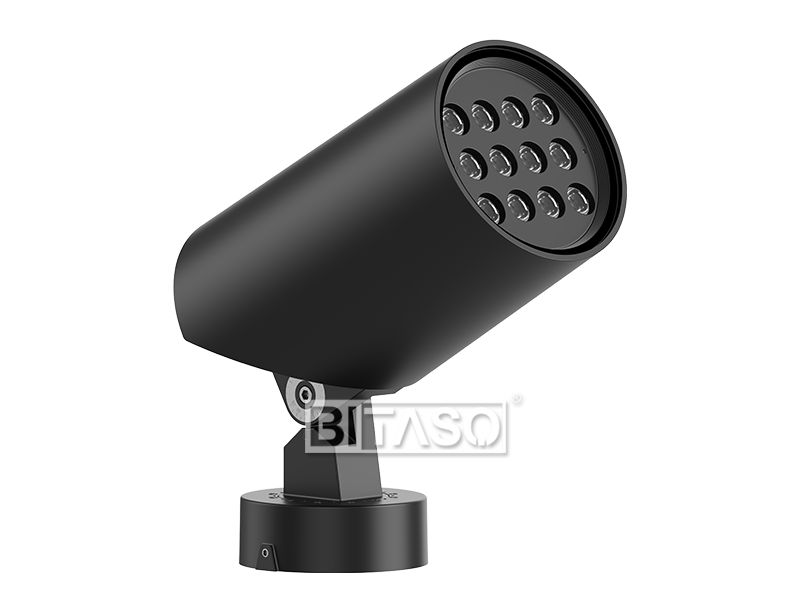

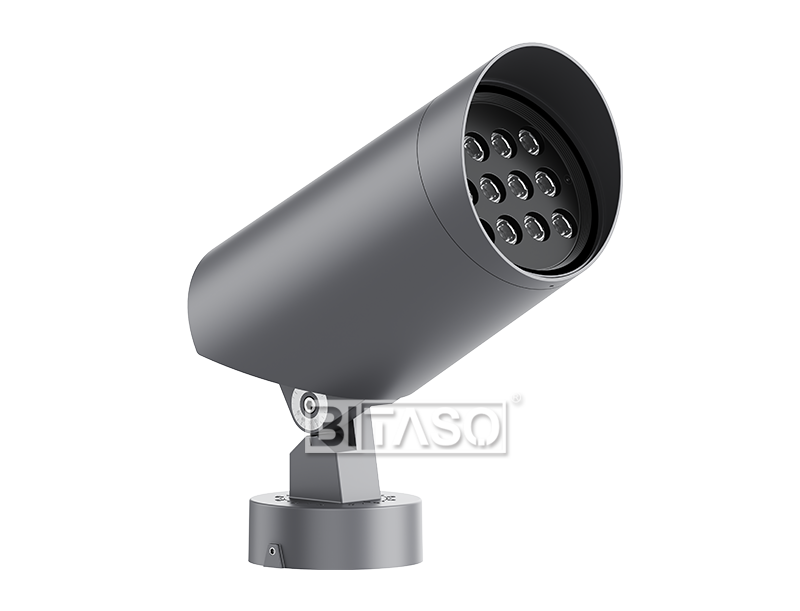

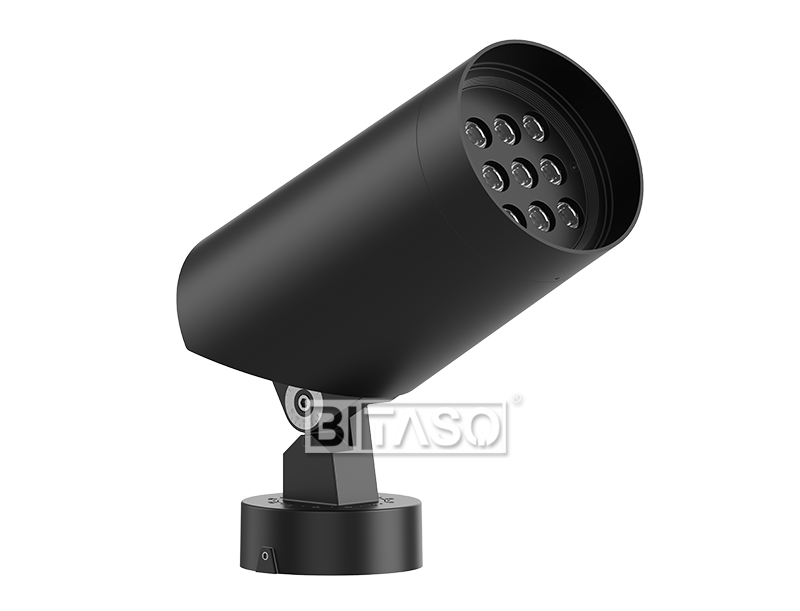

AGLAIA 2.0 D140 SMD with Cylindrical Hood Angle45°

AGLAIA 40W-48W LED landscape lighting with anti-glare visor, IP66 waterproof aluminum outdoor garden spotlights, 110-240VAC/ 24VDC, support monocolor, RGB, RGBW, Triac/ 0-10V/ DALI/ DMX512 dimmable, 5°/8°/10°/25°/40°/60°...multiple beam angles available base mounted architectural projector lights.

ELECTRONICS

Power(Luminaire)30-36W/40-48WPower Factor>0.9
Input VoltageDC24V DC36V DC48V AC110-240V 50/60HzDriver OptionIntegral control gear
Dmming TypeON/OFF, 0-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin


OPTICS

Light Source12PCS SMDLumen(Luminaire):2700LM-3240LM, 3600LM-4320LM
LED BrandOSRAM/CREE/TYANSHINE/LUMINUS SMDLuminaire Lminous Efficacy90LM/W
Full White LED(FW)2700K/3000K/3500K/4000K/5000K/6500KTunable White2700K/6500K
Multi ColorGreen, Red, Blue, Yellow, Amber, RGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle5°,8°,10°,12°,20°,25°,30°,40°,45°,60°,10°x22°,15°x55°,20°x60°,etc.
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesCylindrical Hood Angle 45°, Cylindrical Hood, Honeycomb Louver


CONTROL SYSTEM

ControlON/OFF, 0-10V, DALI, Triac, DMX512DMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK08, IP66, Class ICertificateIP66, CE, ETL, RoHS, CCC


LIGHT DISTRIBUTION

MECHANICS

Dimension141x230x269mmWeight0.75KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishBlack/Grey/WhiteMounting TypeFloor/Ground/Tree


OPTIONAL ACCESSORIES

  • Cylindrical Hood

    Cylindrical Hood

  • CylindricalHood Angle45°

    CylindricalHood Angle45°

  • Honeycomb Grille

    Honeycomb Grille

  • Honeycomb Louver

    Honeycomb Louver

  • M16 2_3PIN IP68 Connector

    M16 2_3PIN IP68 Connector

  • 20T-2_3_4PIN IP68 Connector

    20T-2_3_4PIN IP68 Connector

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

  • PROJECT REFERENCE

    PROJECT REFERENCE
