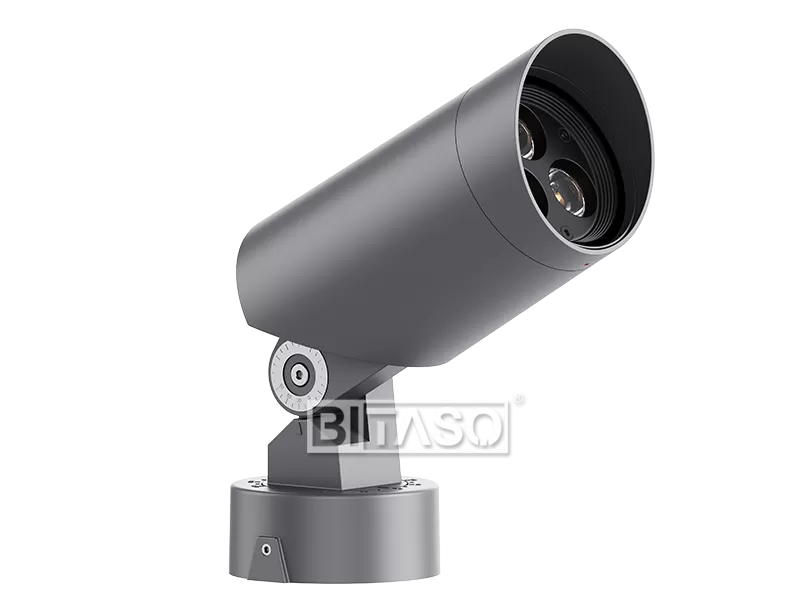

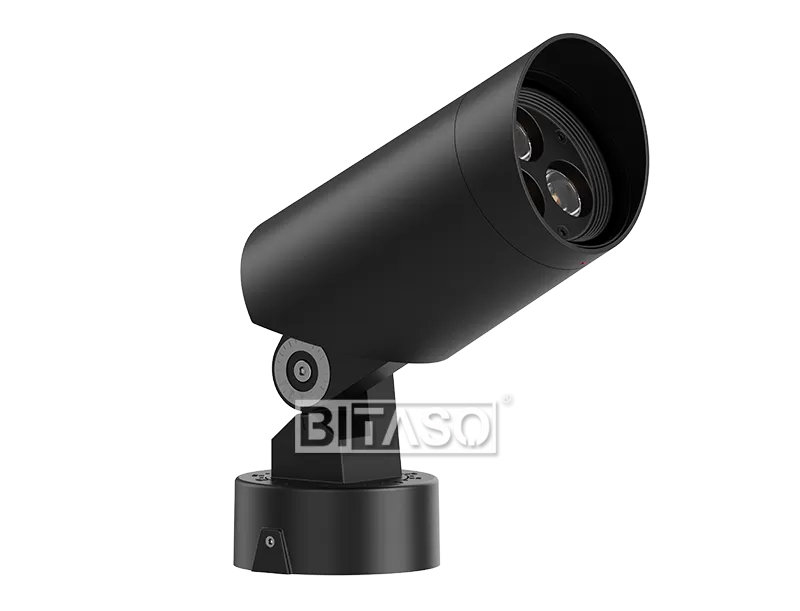

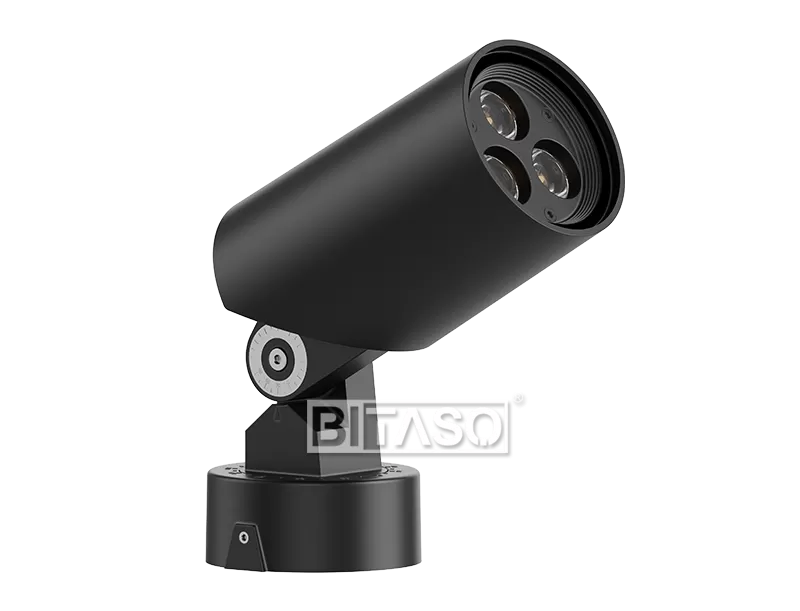

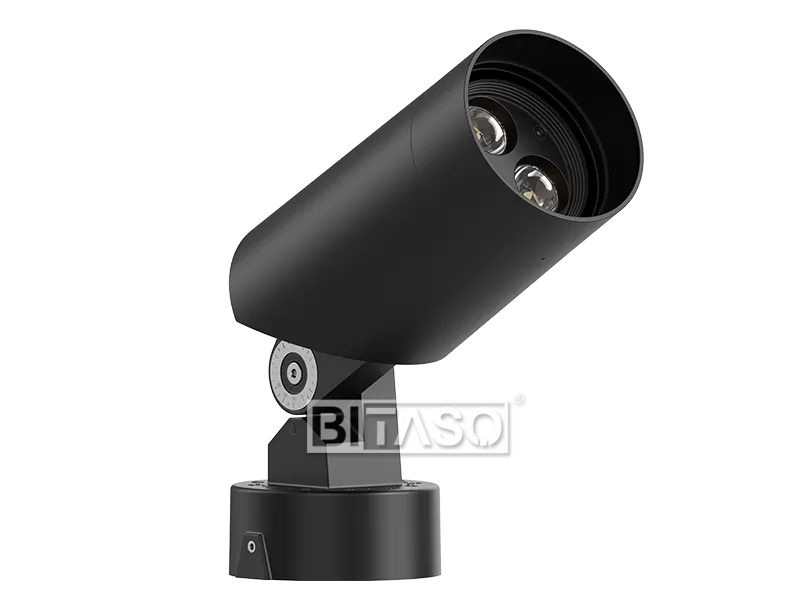

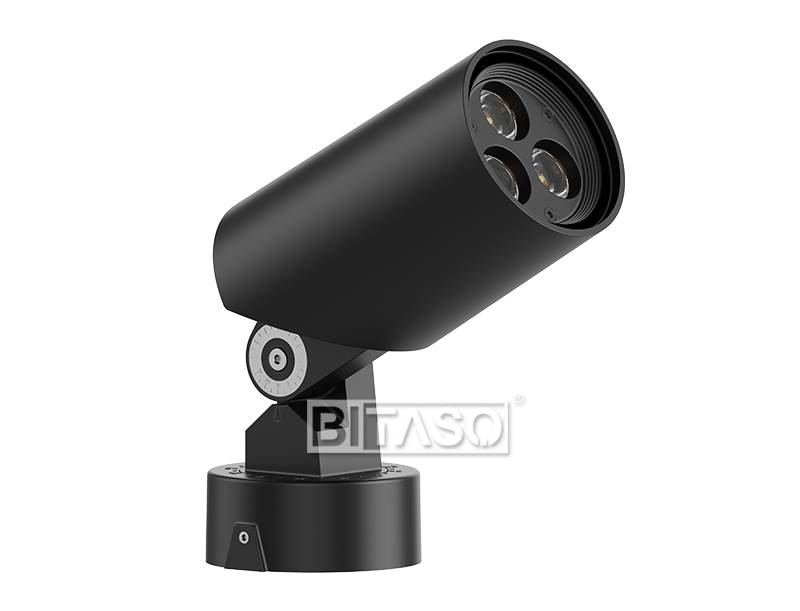

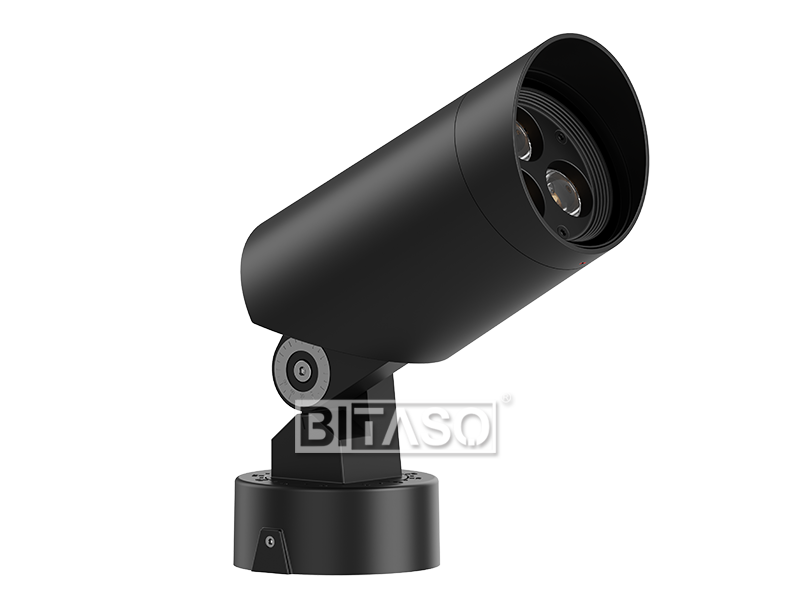

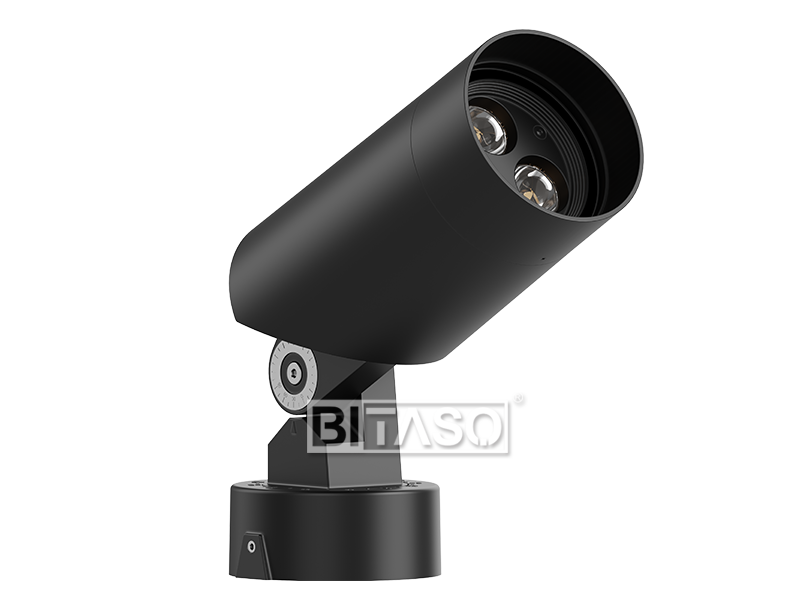

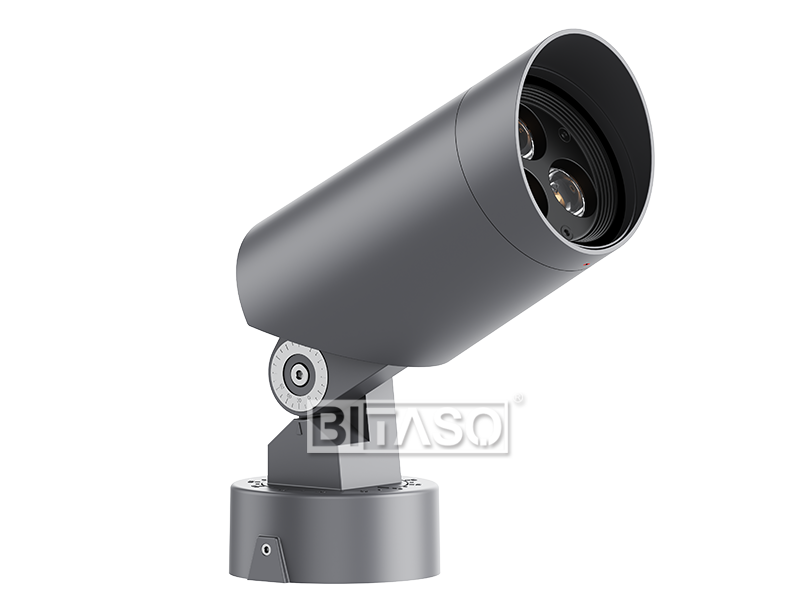

AGLAIA 2.0 D68 SMD with Cylindrical Hood

AGLAIA 6W/12W outdoor surface LED luminaire, with anti-glare cylindrical hood, a variety of anti-glare accessories are available (honeycomb, cylindrical hood angle 45°), narrow beam angles LED garden projector lights, 2700-6500K/ RGB/ RGBW base mounted landscape spot lights for path, lawn, courtyard, patio, driveway, outdoor decoration.

ELECTRONICS

Power(Luminaire)6-12WPower Factor>0.9
Input VoltageDC12V DC24V DC36V DC48V AC110-240V 50/60HzDriver OptionIntegral control gear
Dmming TypeON/OFF, 0-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin


OPTICS

Light Source3PCS SMDLumen(Luminaire):540LM-1080LM
LED BrandOSRAM/CREE/TYANSHINE/LUMINUS SMDLuminaire Lminous Efficacy90LM/W
Full White LED(FW)2700K/3000K/3500K/4000K/5000K/6500KTunable White2700K/6500K
Multi ColorGreen, Red, Blue, Yellow, Amber, RGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle5°,8°,10°,12°,20°,25°,30°,40°,45°,60°,10°x22°,15°x55°,20°x60°,etc.
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesCylindrical Hood Angle 45°, Cylindrical Hood, Honeycomb Louver


CONTROL SYSTEM

ControlON/OFF, 0-10V, DALI, Triac, DMX512DMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK08, IP66, Class ICertificateIP66, CE, ETL, RoHS, CCC


LIGHT DISTRIBUTION

MECHANICS

Dimension68x113x141mmWeight0.35KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishBlack/Grey/WhiteMounting TypeFloor/Ground/Tree


OPTIONAL ACCESSORIES

  • Cylindrical Hood

    Cylindrical Hood

  • CylindricalHood Angle45°

    CylindricalHood Angle45°

  • Honeycomb Grille

    Honeycomb Grille

  • Honeycomb Louver

    Honeycomb Louver

  • M16 2_3PIN IP68 Connector

    M16 2_3PIN IP68 Connector

  • 20T-2_3_4PIN IP68 Connector

    20T-2_3_4PIN IP68 Connector

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION
