ELECTRONICS
| Power(Luminaire) | 30-36W/40-48W | Power Factor | >0.9, CCS auto calibrating |
| Input Voltage | DC24V DC36V DC48V AC110-240V 50/60Hz | Driver Option | Integral control gear |
| Dmming Type | ON/OFF, 0-10V, DALI, Triac, DMX512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 8 pin power+DMX integrated cable |
OPTICS
| Light Source | 12PCS SMD | Lumen（Luminaire): | 1200LM |
| LED Brand | OSRAM/CREE/TYANSHINE/LUMINUS SMD | Luminaire Lminous Efficacy | 2700LM-3240LM/W, 3600LM-4320LM/W |
| Full White LED(FW) | 2200K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500K | Turnable White | 2700K/6500K |
| Multi Color | Green, Red, Blue, Yellow, Amber, RGB, RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50, 000hrs | Beam Agle | 5°, 8°, 10°, 12°, 20°, 25°, 30°, 40°, 45°, 60°, 10°x22°, 15°x55°, 20°x60°, etc. |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | CrylindricalHood Angle45°, Crylindrical Hood, Diffuser, Filter, Honeycomb Louver |
CONTROL SYSTEM
| Control | DMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment) | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK08, IP66, Class I | Certificate | IP66, CE, ETL, RoHS, CCC |
LIGHT DISTRIBUTION

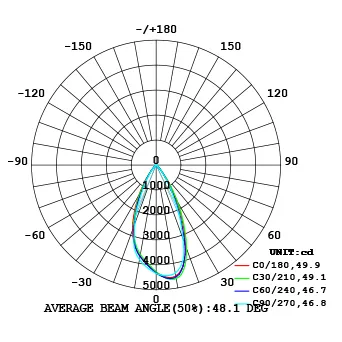

AGLAIA D140 SMD AVERAGE BEAM ANGLE(50%).48.1°
MECHANICS
| Dimension | 141x230x904mm | Weight | 1.05KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |
| Finish | Black/Grey/White | Mounting Type | floor |
OPTIONAL ACCESSORIES
20T-2_3_4PIN IP68 Connector

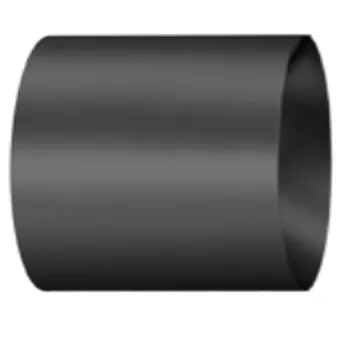

Crylindrical Hood

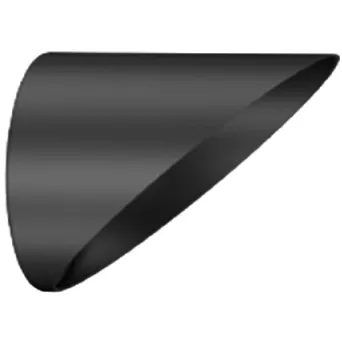

Crylindrical Hood Angle45°

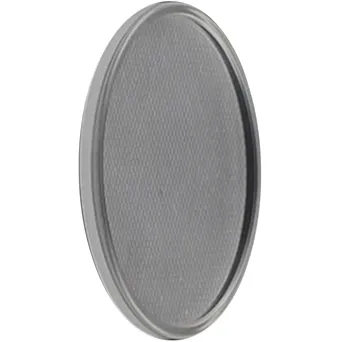

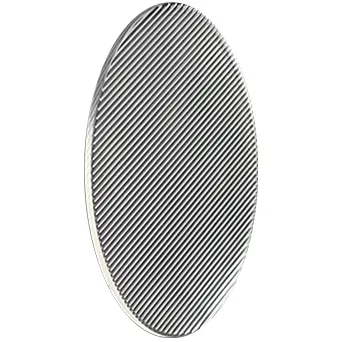

Diffuser 1
Diffuser 2
Filter
Honeycomb Grille

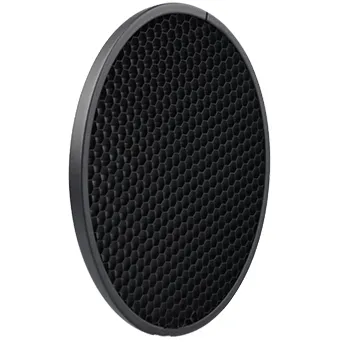

Honeycomb Louver
M16 2_3PIN IP68 Connector

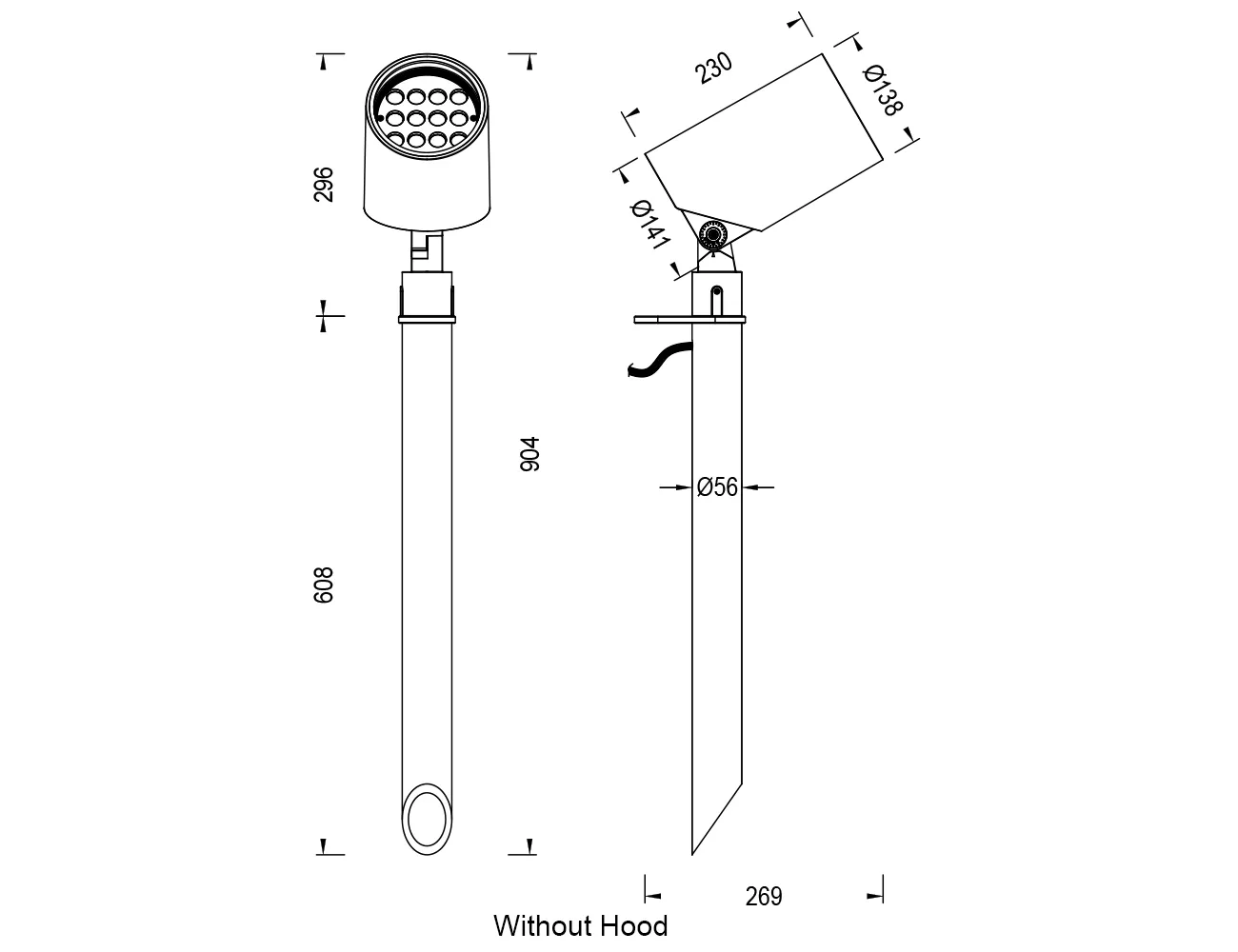

LUMINAIRE DIMENSION
DOWNLOAD

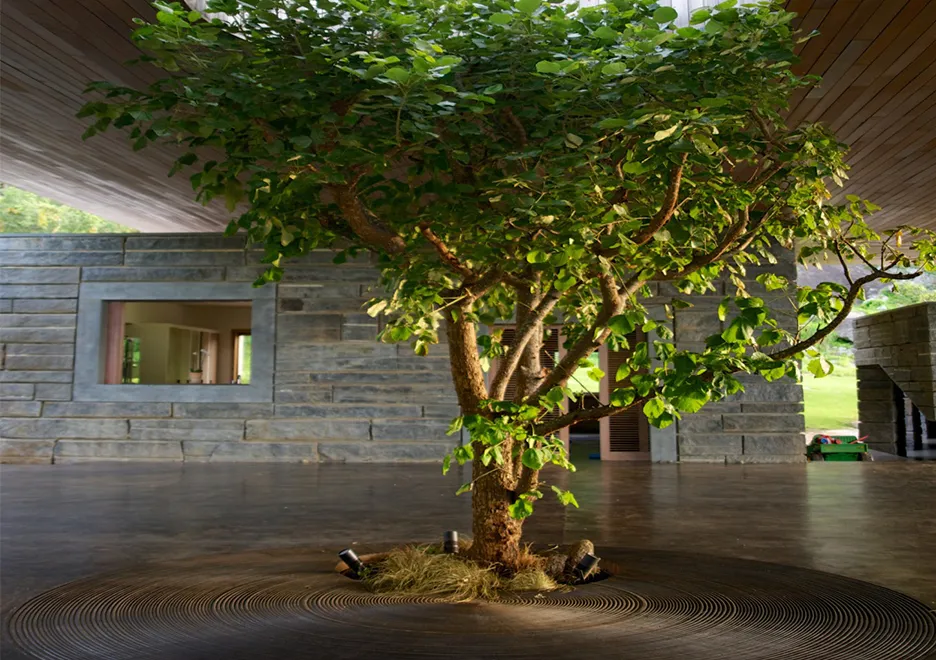

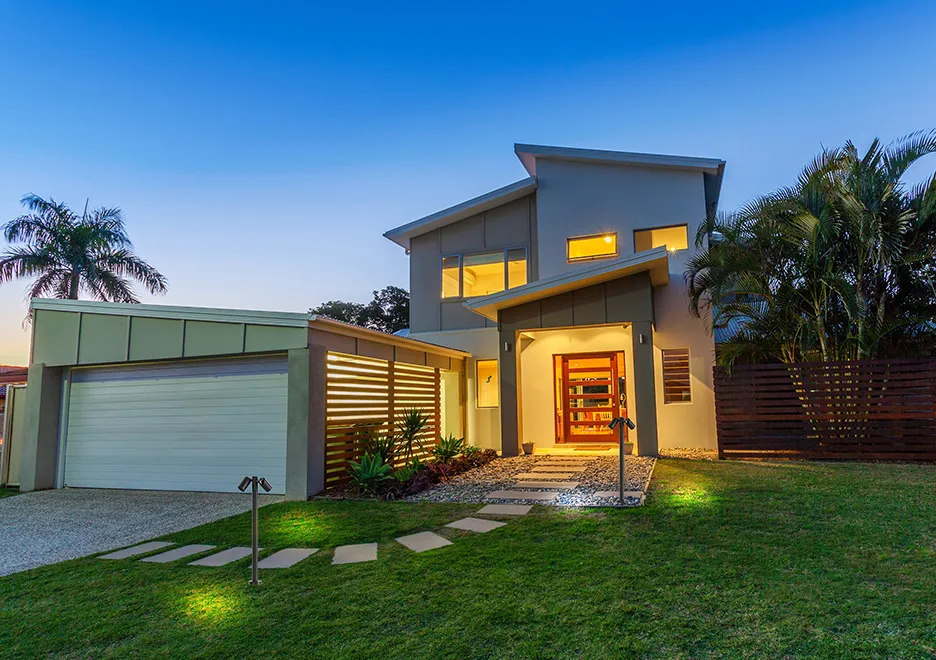

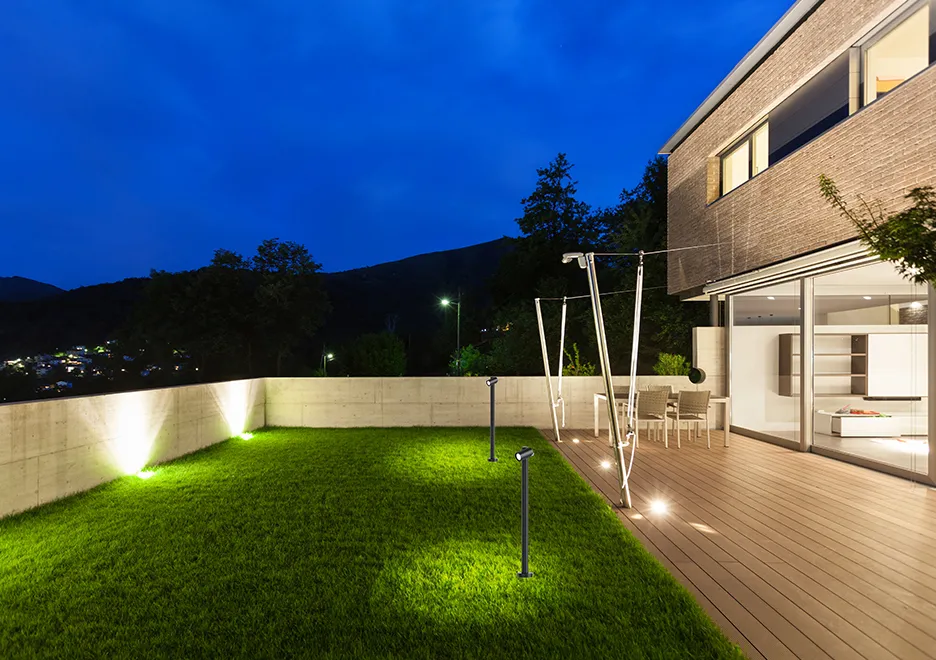

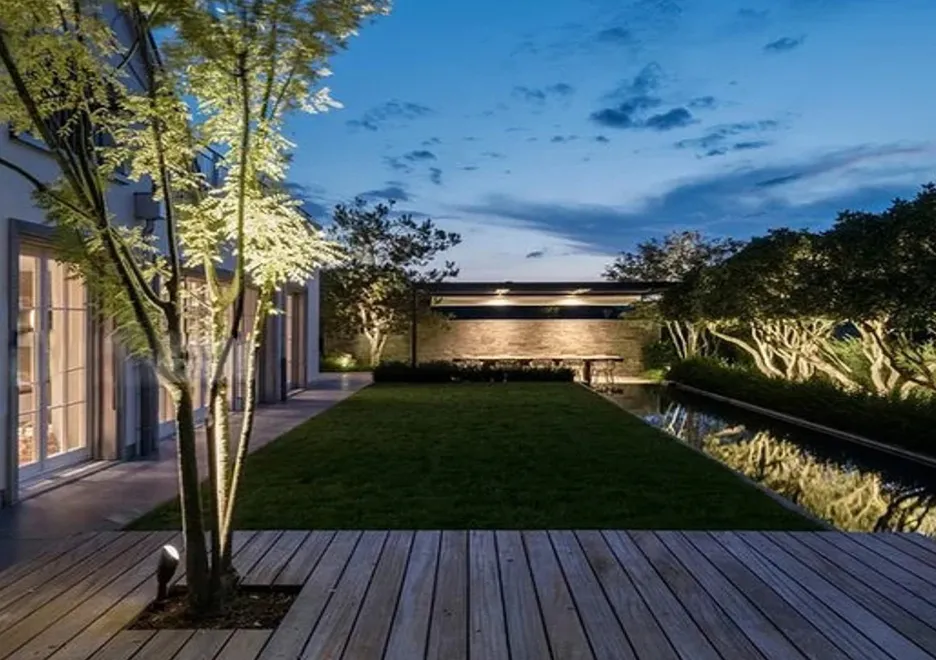

PROJECT REFERENCE
