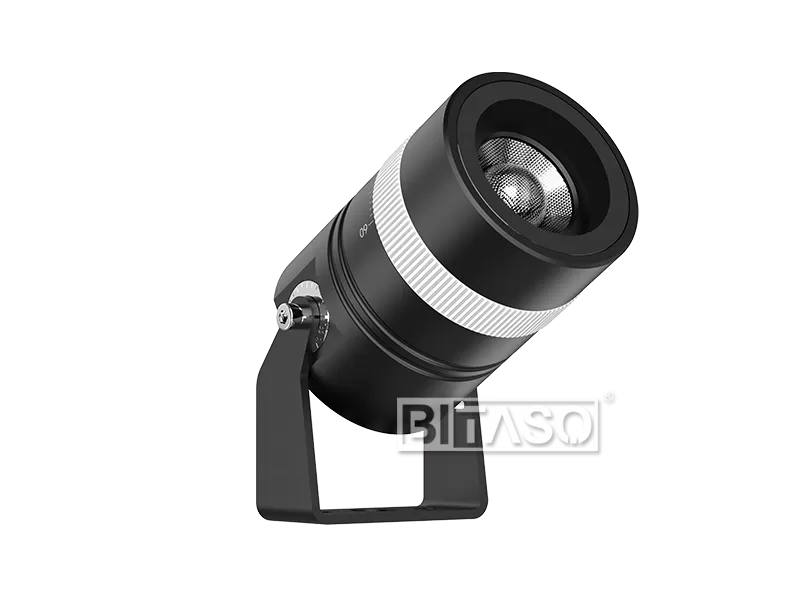

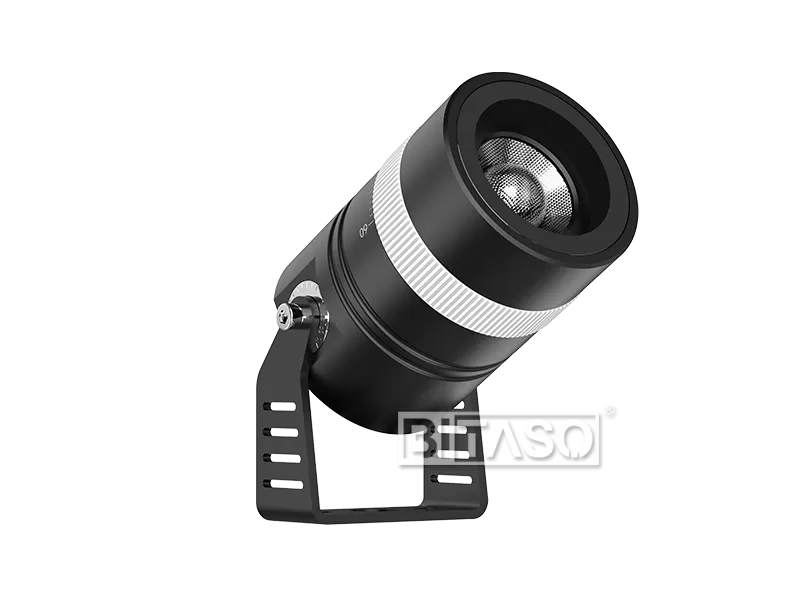

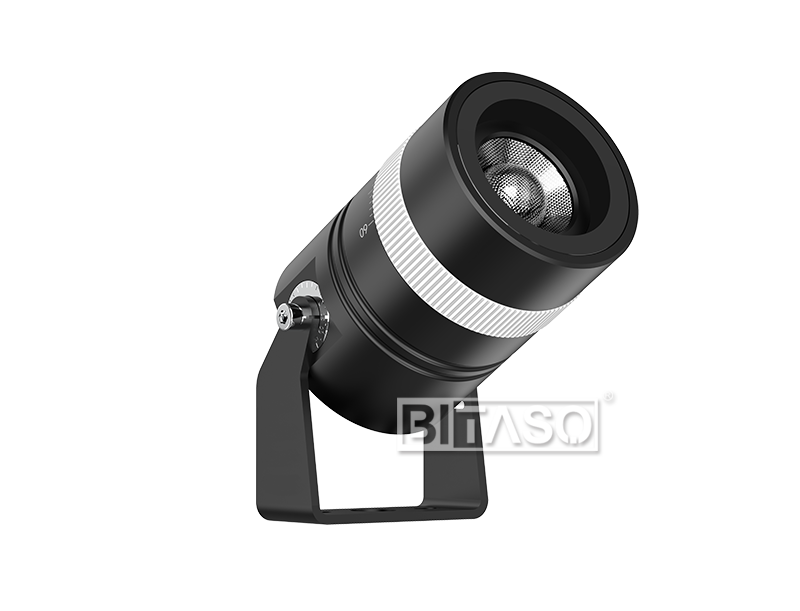

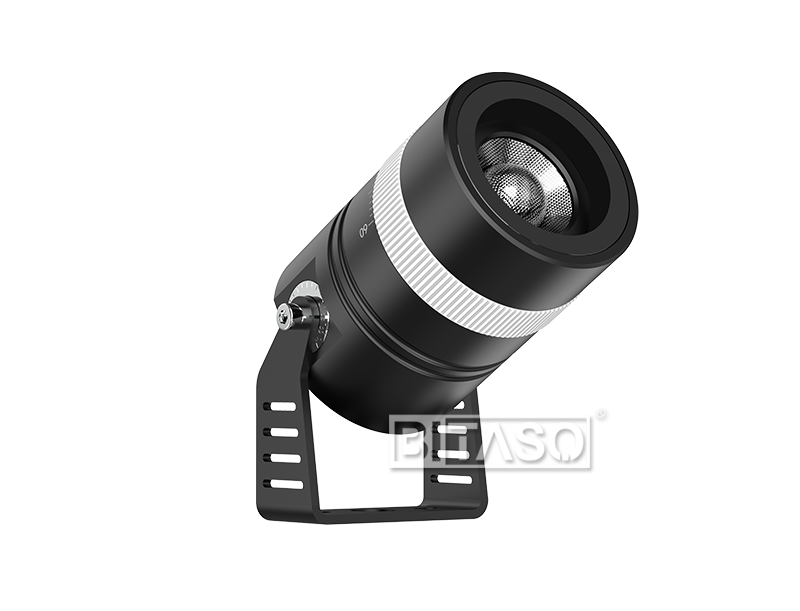

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,flood lighting and wall washing in the outdoor area.
ELECTRONICS
| Power(Luminaire) | 10/12/15W | Power Factor | >0.9 |
| Input Voltage | DC24 DC36V DC48V AC110-240V 50/60Hz | Driver Option | Integral control gear |
| Dmming Type | 0-10V, DALI,Triac,DMX512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | 1PCS SMD | Lumen（Luminaire): | 320-560LM |
| LED Brand | CREE/TYANSHINE SMD | Luminaire Lminous Efficacy | 80LM/W |
| Full White LED(FW) | 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500K | Turnable White | |
| Multi Color | CRI | Ra>85, Ra>90 | |
| LED Life Span | ≥50,000hrs | Beam Agle | 20-60° |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Crylindrical Hood Angle 45°, Crylindrical Hood,Honeycomb Louver |
CONTROL SYSTEM
| Control | 0-10V, DALI,Triac,DMX512 | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | CNC 6063#aluminum housing |
| Compliance | IK08, IP66, Class I | Certificate | IP66, CE, ETL, RoHS, CCC |
LIGHT DISTRIBUTION
LYMO D85 COB AVERAGE BEAM ANGLE(50%).15°
LYMO D85 COB AVERAGE BEAM ANGLE(50%).24°
LYMO D85 COB AVERAGE BEAM ANGLE(50%).36°
LYMO D85 COB AVERAGE BEAM ANGLE(50%).60°
MECHANICS
| Dimension | 85*125*162mm | Weight | 0.65KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | CNC 6063#aluminum housing |
| Finish | Matt silver/black anodized Finsh or powder coated | Mounting Type | U brackert&mounting plate for solid ground, prike for soft ground |
OPTIONAL ACCESSORIES
20T-2_3_4PIN IP68 Connector
Honeycomb Louver
M16 2_3PIN IP68 Connector
Crylindrical Hood Angle 45°
Crylindrical Hood Angle 45°

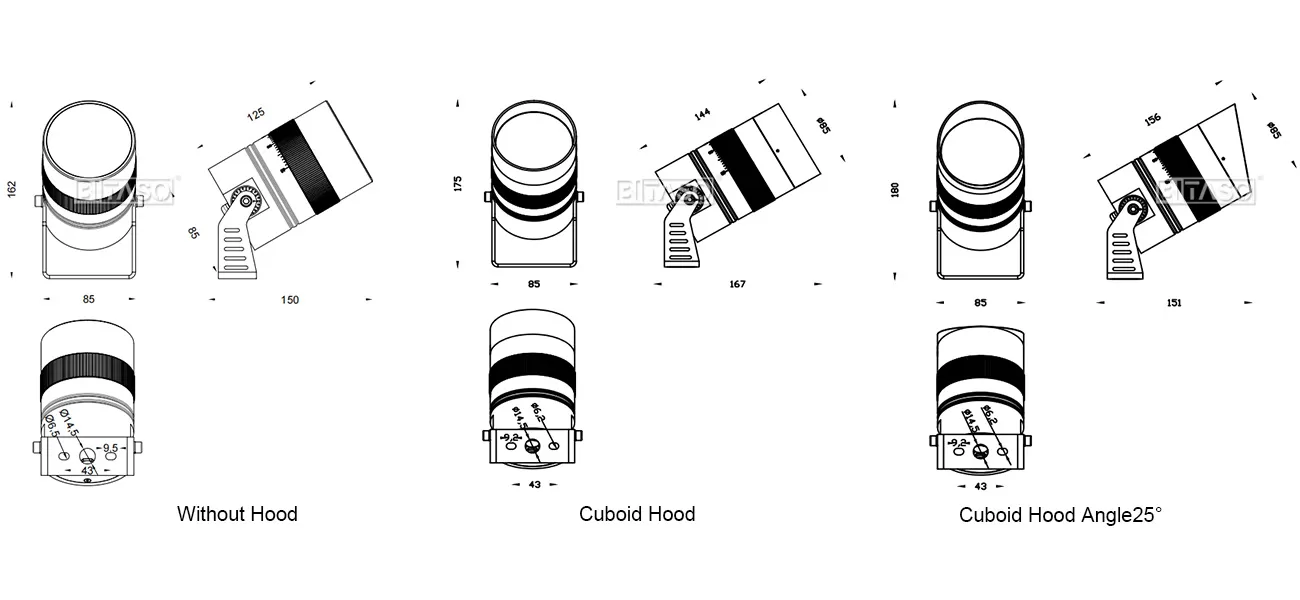

LUMINAIRE DIMENSION
PROJECT REFERENCE
BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.
PROJECT REFERENCE
BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.
PROJECT REFERENCE
BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.
