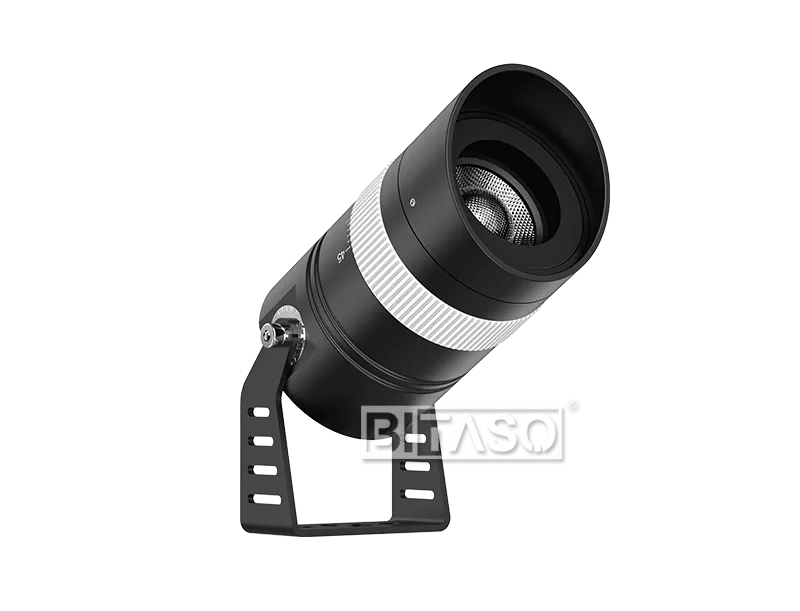

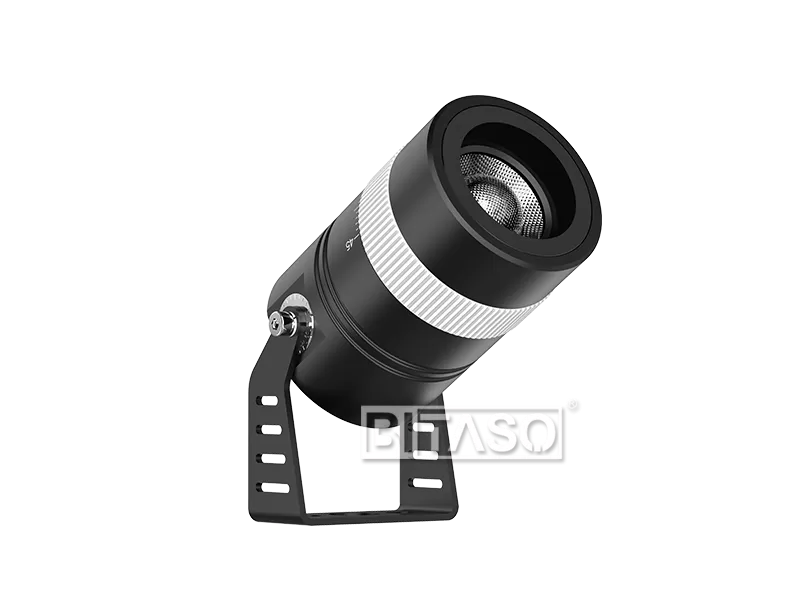

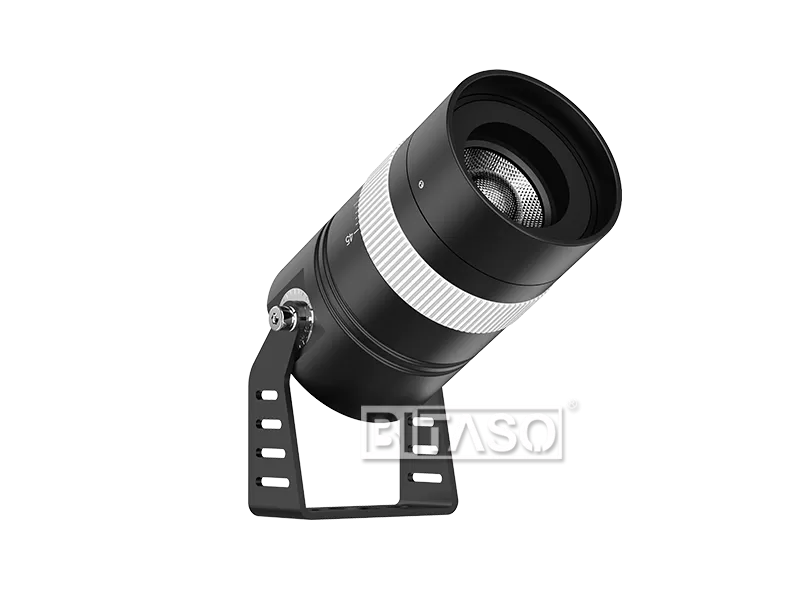

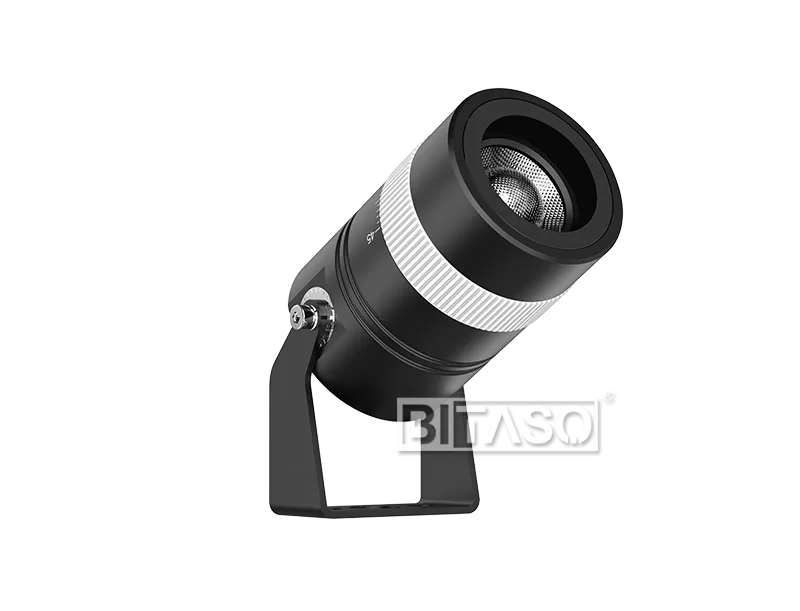

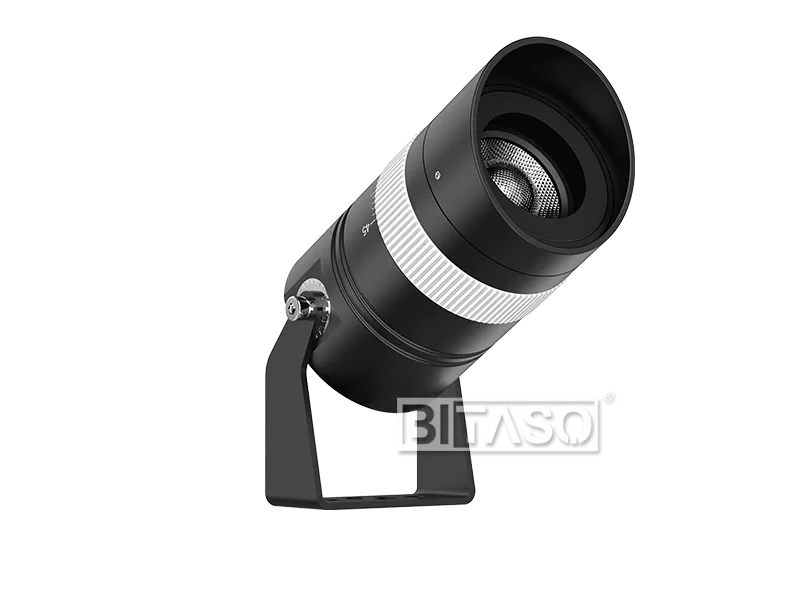

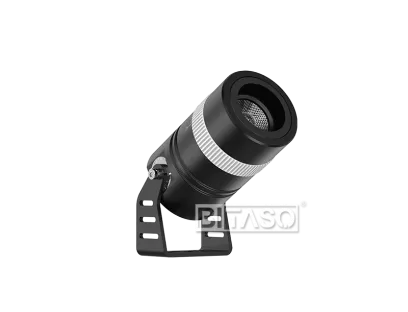

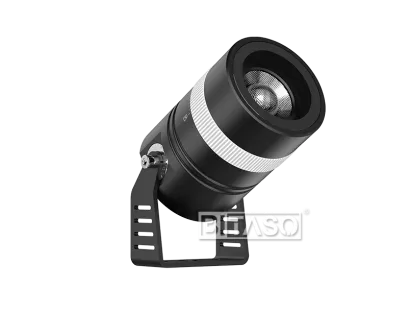

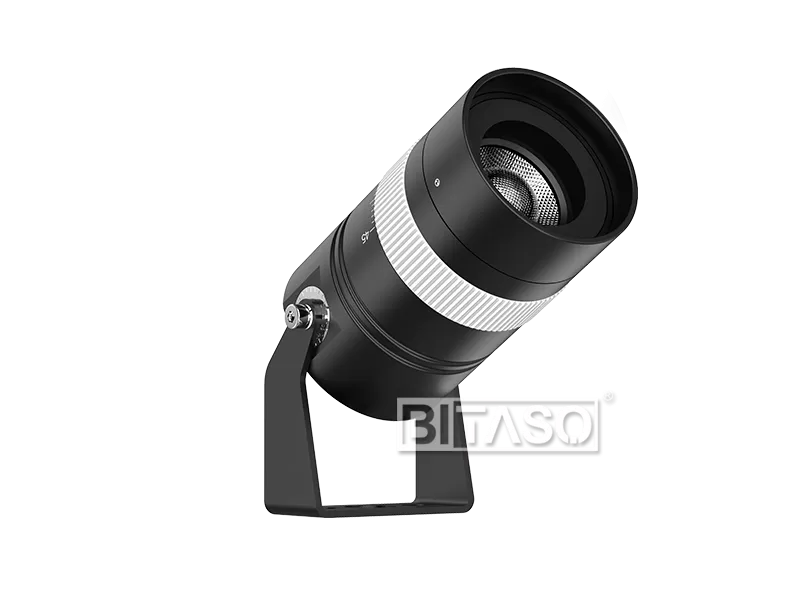

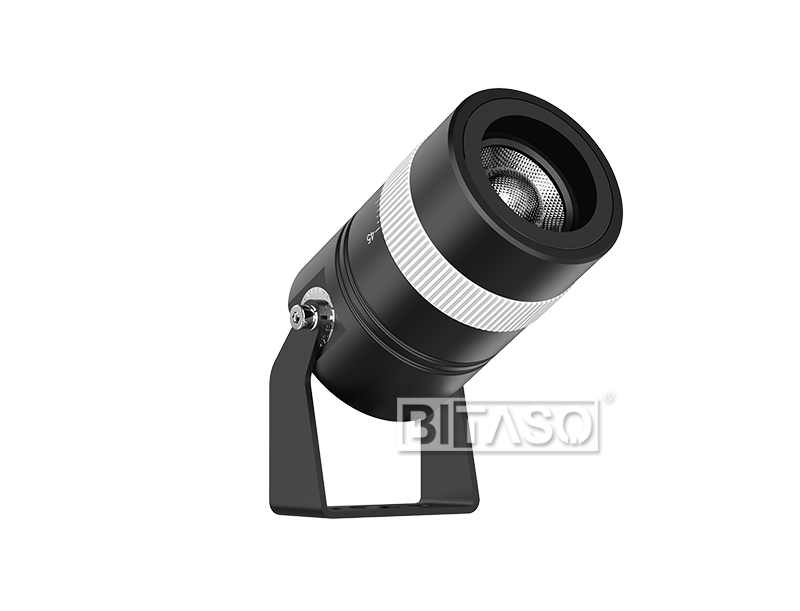

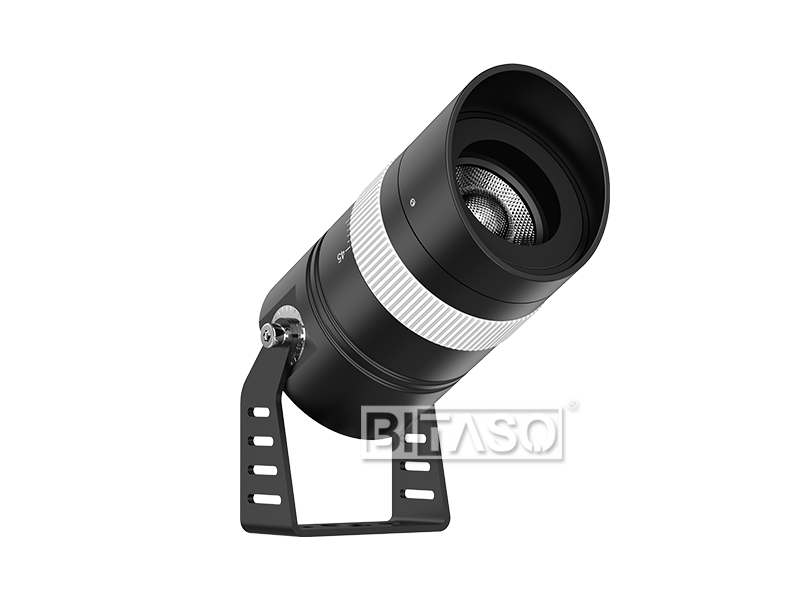

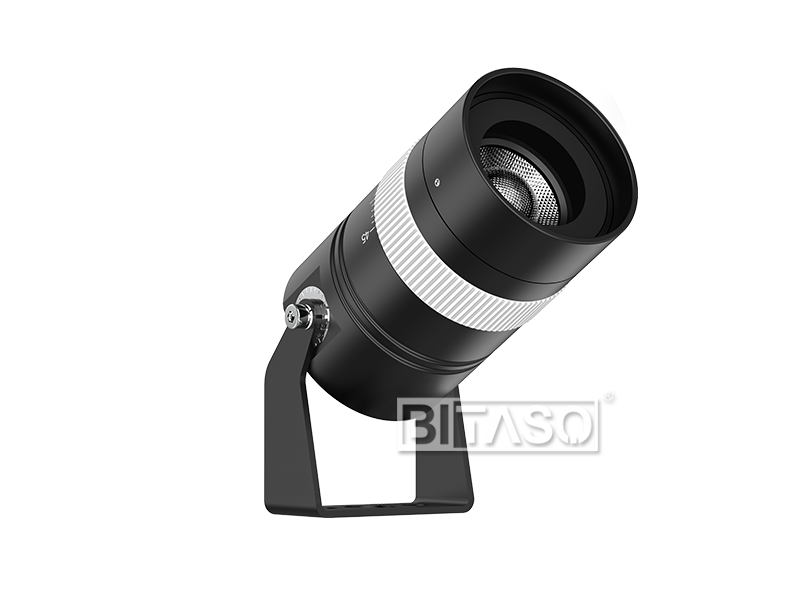

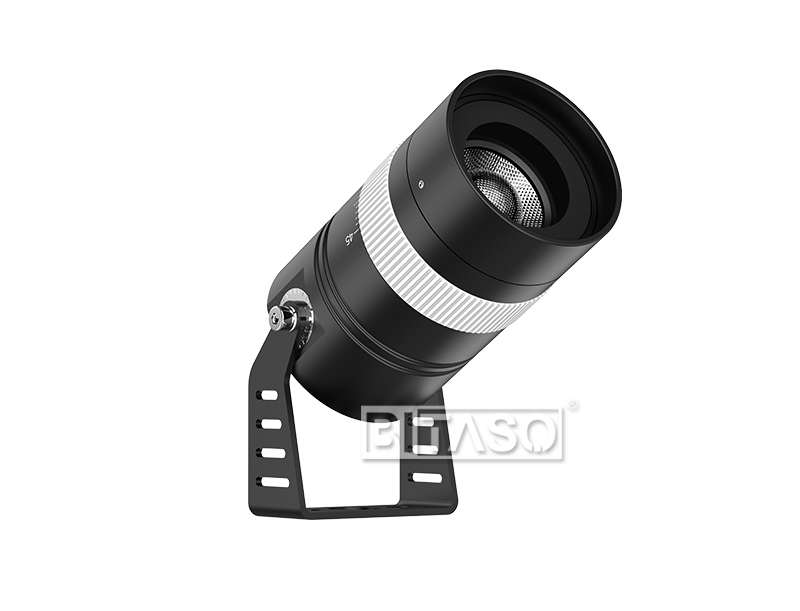

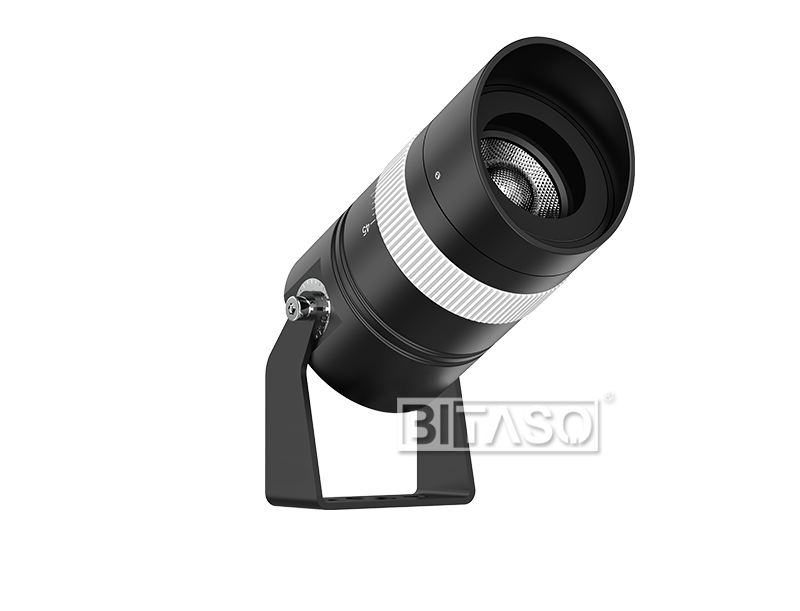

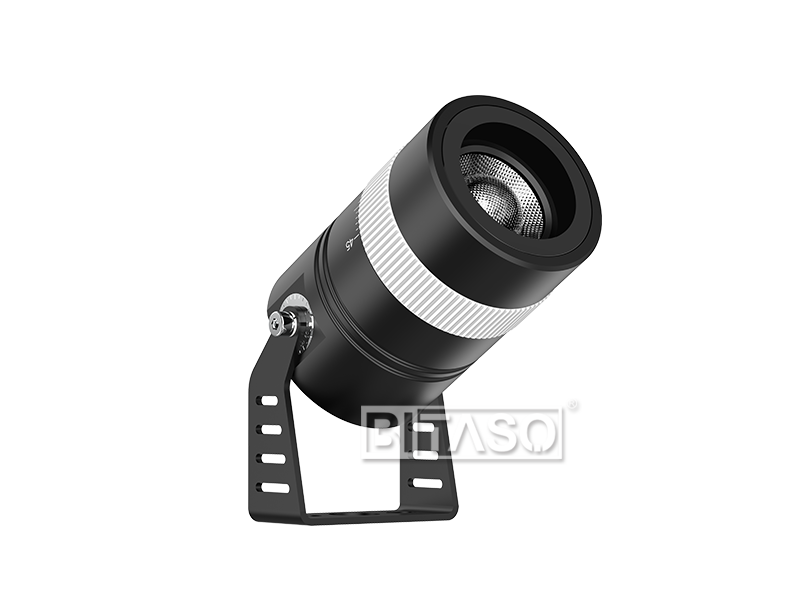

LYNMO D55 Spot Zoomable

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,flood lighting and wall washing in the outdoor area.

ELECTRONICS

Power(Luminaire)4-7WPower Factor>0.9
Input VoltageDC24 DC36V DC48V AC110-240V 50/60HzDriver OptionIntegral control gear
Dmming TypeDXM512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin

OPTICS

Light Source1PCS SMDLumen(Luminaire): 240/560LM
LED BrandCREE SMDLuminaire Lminous Efficacy80LM/W
Full White LED(FW)2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500KTurnable White
Multi Color
CRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Agle20-60°
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesCrylindrical Hood Angle 45°, Crylindrical Hood,Honeycomb Louver

CONTROL SYSTEM

ControlDMX512DMX ChannelFW (1ch), TW (2chs )
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingCNC 6063#aluminum housing
ComplianceIK08, IP66, Class ICertificateIP66, CE, ETL, RoHS, CCC

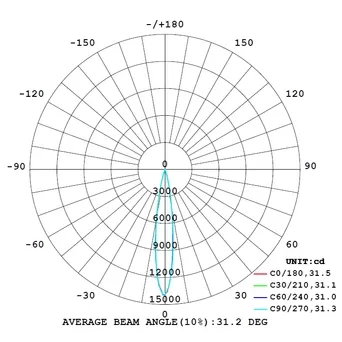

LIGHT DISTRIBUTION

  • LYMO D55 SMD AVERAGE BEAM ANGLE(50%).12°

    LYMO D55 SMD AVERAGE BEAM ANGLE(50%).12°

  • LYMO D55 SMD AVERAGE BEAM ANGLE(50%).25°

    LYMO D55 SMD AVERAGE BEAM ANGLE(50%).25°

  • LYMO D55 SMD AVERAGE BEAM ANGLE(50%).30°

    LYMO D55 SMD AVERAGE BEAM ANGLE(50%).30°

  • LYMO D55 SMD AVERAGE BEAM ANGLE(50%).40°

    LYMO D55 SMD AVERAGE BEAM ANGLE(50%).40°

MECHANICS

Dimension55*85*115mmWeight0.75KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialCNC 6063#aluminum housing
FinishMatt silver/black anodized Finsh or powder coatedMounting TypeU brackert&mounting plate for solid ground, prike for soft ground

OPTIONAL ACCESSORIES

  • 20T-2_3_4PIN IP68 Connector

    20T-2_3_4PIN IP68 Connector

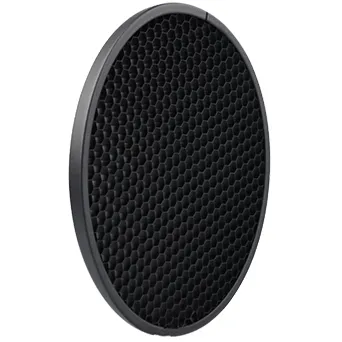

  • Honeycomb Louver

    Honeycomb Louver

  • M16 2_3PIN IP68 Connector

    M16 2_3PIN IP68 Connector

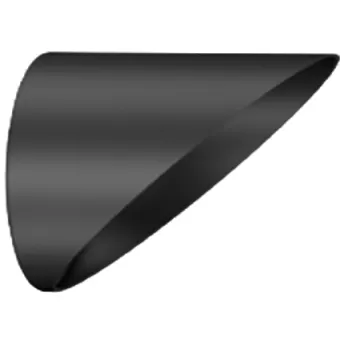

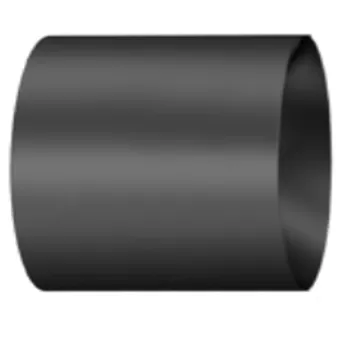

  • Crylindrical Hood Angle 45°

    Crylindrical Hood Angle 45°

  • Crylindrical Hood Angle 45°

    Crylindrical Hood Angle 45°

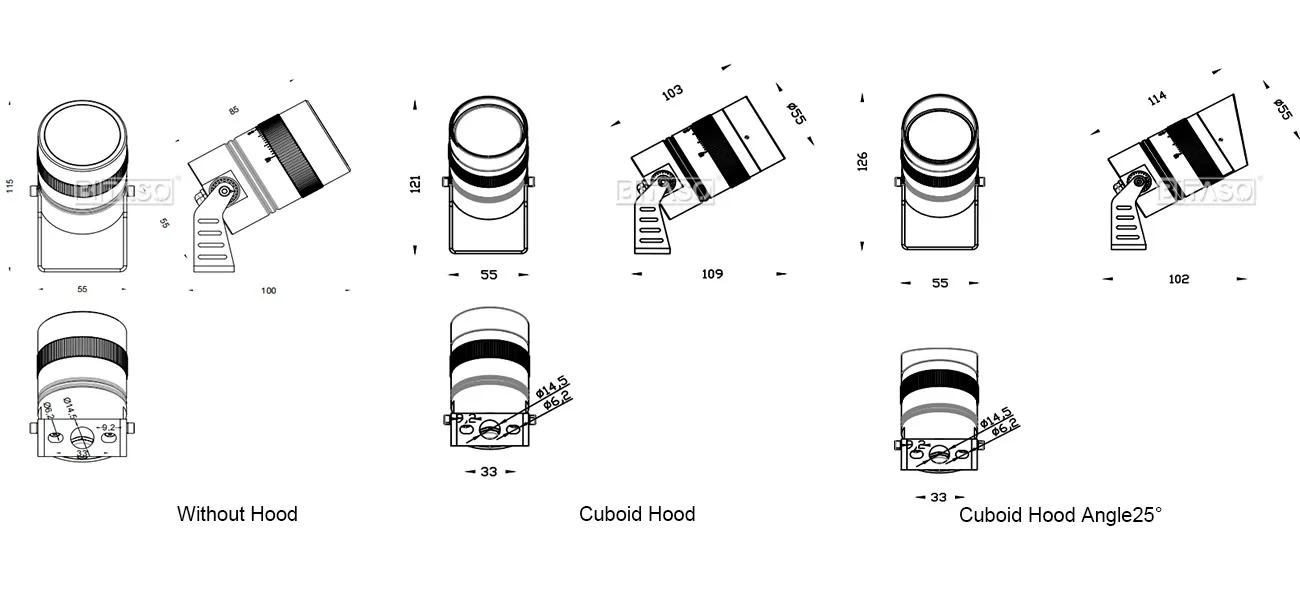

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

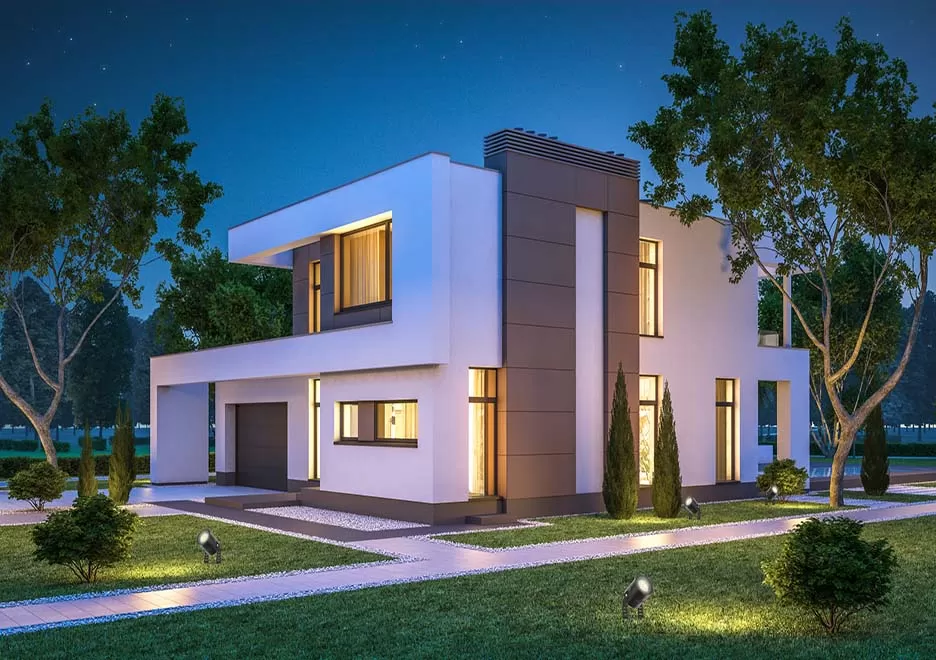

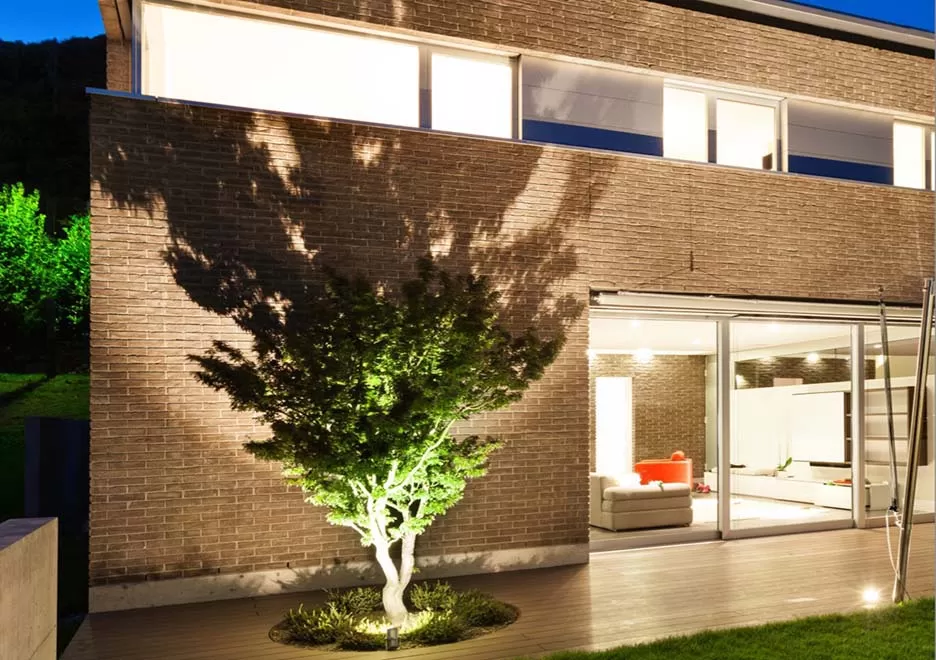

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on  independent technology innovation of new models design.

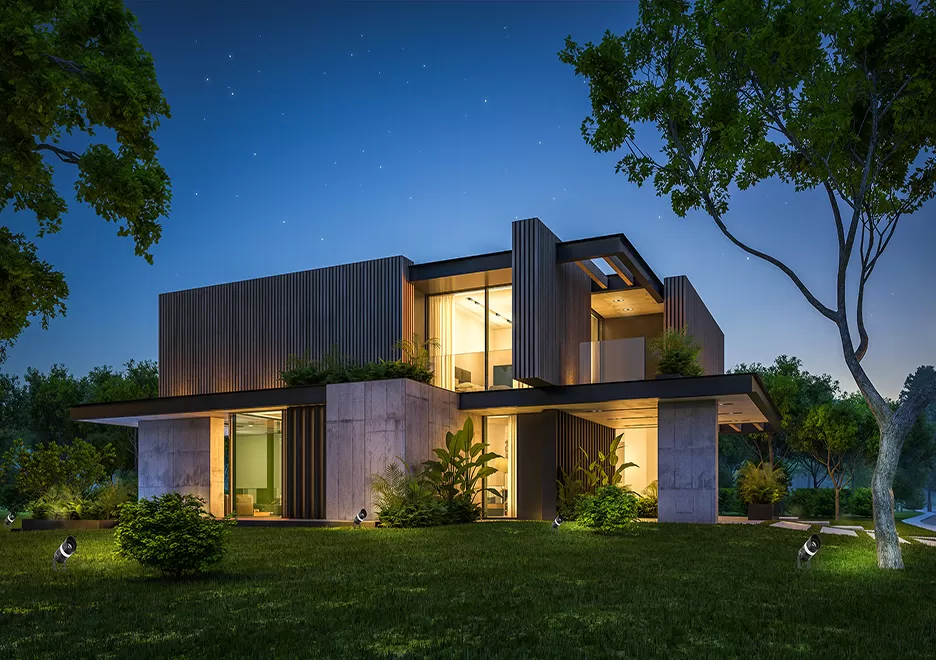

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on  independent technology innovation of new models design.

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on  independent technology innovation of new models design.
