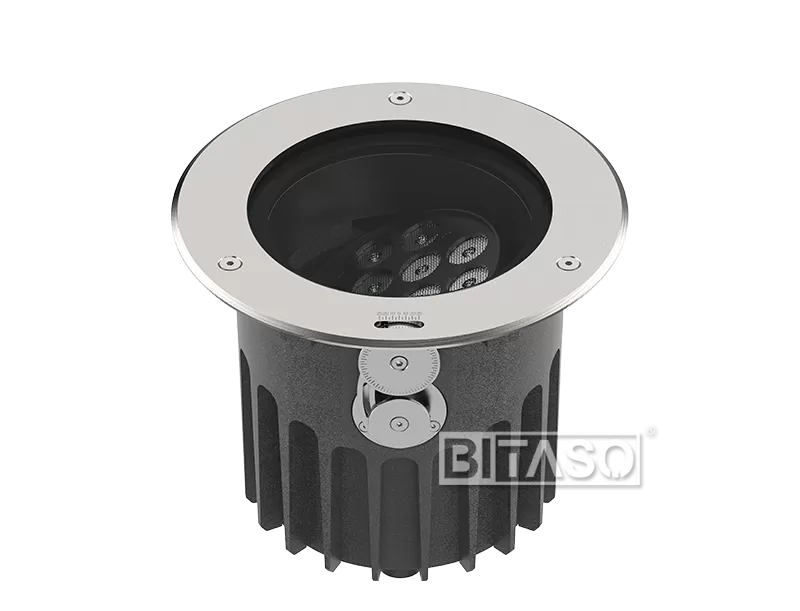

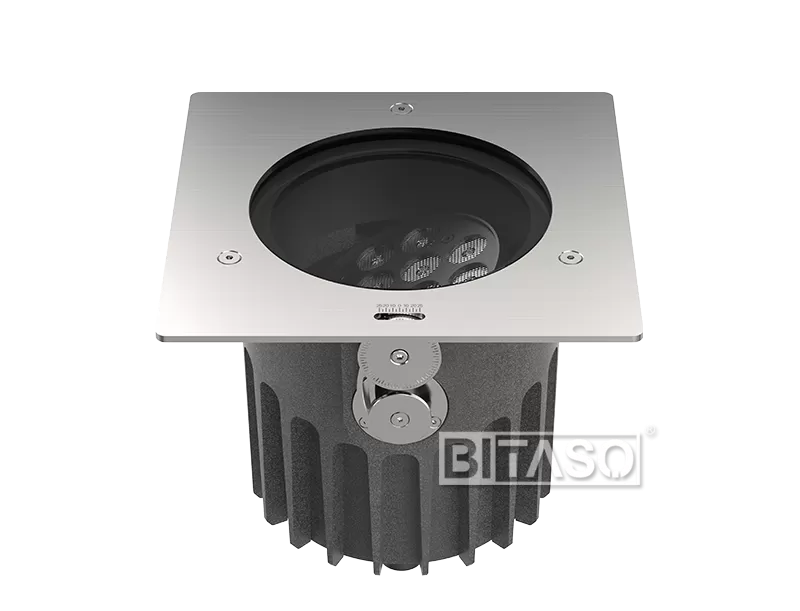

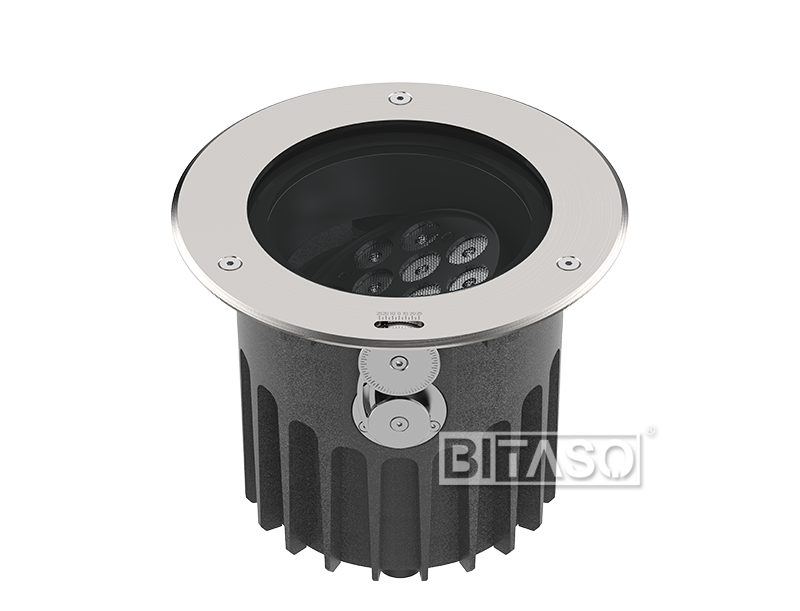

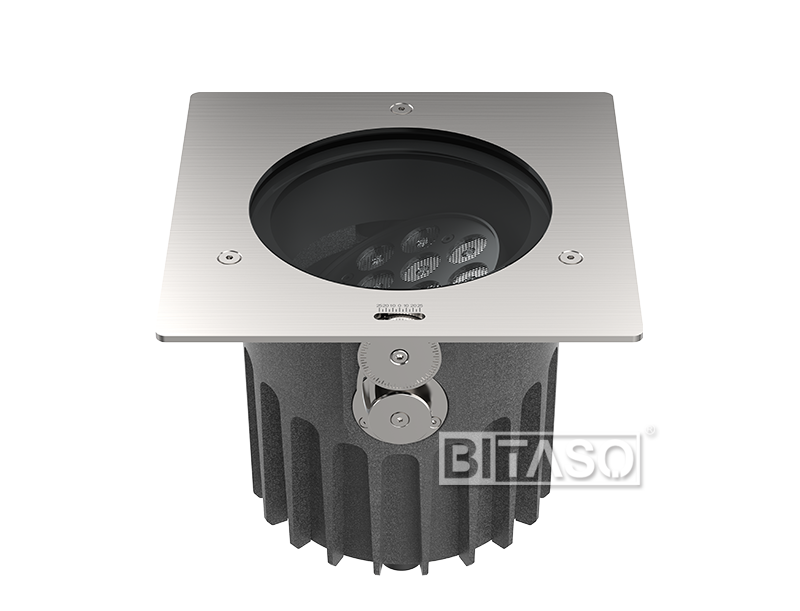

EARTHA D208 SMD Beam Direction Adjustable Inground Light

15 degree beam direction adjustable in clockwise or anti-clockwise direction, 0/5/10/15D graduations for beam direction adjustability. Make the light beam at the most reasonable direction toward the illuminated target.

10 degree beam direction adjustable allowed at the the left and right sides after the mounting sleeve-embedded/ fixed into the ground.Ensure the light be installed at most accurate and suitable direction.


ELECTRONICS

Power(Luminaire)36W-42WPower Factor>0.9
Input VoltageDC24V DC36V DC48V AC110-130V AC110-240V AC220-240V 50/60HzDriver OptionIntegral control gear
Dmming TypeON/OFF, 0-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 pin

OPTICS

Light Source12PCS SMDLumen(Luminaire): 3240LM-3780LM
LED BrandCREE/OSRAM/LUMINNUS/TYANSHINE SMDLuminaire Lminous Efficacy80LM/W
Full White LED(FW)2200K,2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500KTunable White2700K-6500K
Multi ColorRGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle8°/12°/17°/20°/25°/30°/40°/45°/60°/10*22°/15*55°/15*30°/20*60°
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesFilter, Honeycomb Louver, Round-meshed grill

CONTROL SYSTEM

ControlDMX512/DALI/ 0-10V/TriacDMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK09, IP67, Class ICertificateIP67, CE, ETL, RoHS, CCC

LIGHT DISTRIBUTION

  • Average Beam Angle(10%) 25D

    Average Beam Angle(10%) 25D

  • Average Beam Angle(10%) 30D

    Average Beam Angle(10%) 30D

  • Average Diffuse Angle(50%) 15D

    Average Diffuse Angle(50%) 15D

  • Average Diffuse Angle(50%) ASY 30D

    Average Diffuse Angle(50%) ASY 30D

MECHANICS

Dimension208x185mmWeight3.55KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishPowder CoatedMounting Typeground recessed

OPTIONAL ACCESSORIES

  • 20T-2_3_4PIN IP68 Connector

    20T-2_3_4PIN IP68 Connector

  • Diffuser 1

    Diffuser 1

  • Diffuser 2

    Diffuser 2

  • EW-M2068 2_3PIN IP68 Connector

    EW-M2068 2_3PIN IP68 Connector

  • Extension Cable

    Extension Cable

  • Filter

    Filter

  • Honeycomb Louver

    Honeycomb Louver

  • Input Cable 1

    Input Cable 1

  • Input Cable 2

    Input Cable 2

  • Input Cable 3

    Input Cable 3

  • Input Cable 4

    Input Cable 4

  • M16 2_3PIN IP68 Connector

    M16 2_3PIN IP68 Connector

  • M20 3_4_5_6PIN IP68 Connector

    M20 3_4_5_6PIN IP68 Connector

  • M20X 2_3PIN IP68 Connector

    M20X 2_3PIN IP68 Connector

  • M25 3_4_5PIN IP68 Connector

    M25 3_4_5PIN IP68 Connector

  • M2068 2_3PIN IP68 Connector

    M2068 2_3PIN IP68 Connector

  • Mounting Box

    Mounting Box

  • Round -meshed grill & Light Control Cup

    Round -meshed grill & Light Control Cup

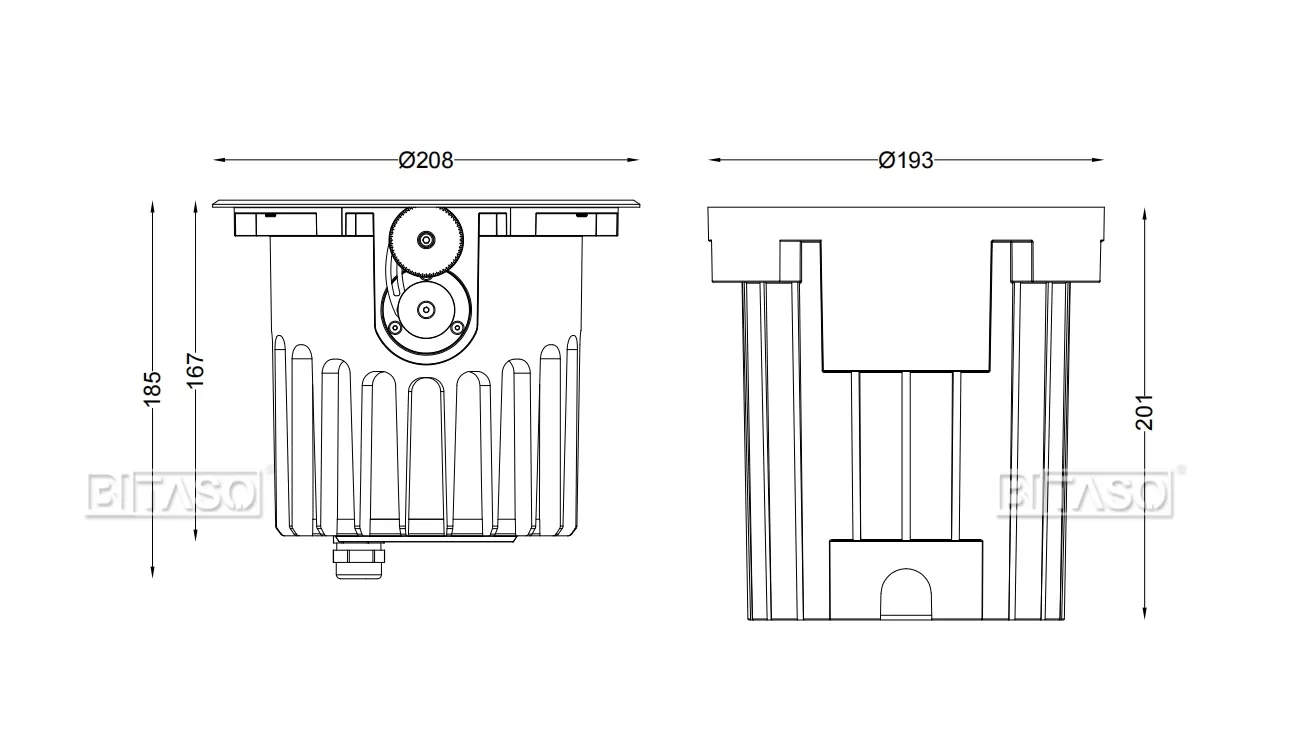

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION
