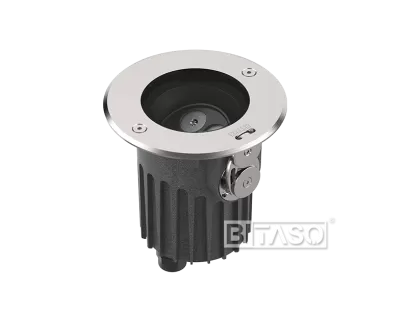

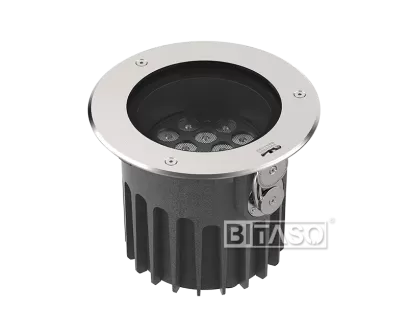

15 degree beam direction adjustable in clockwise or anti-clockwise direction, 0/5/10/15D graduations for beam direction adjustability. Make the light beam at the most reasonable direction toward the illuminated target.
10 degree beam direction adjustable allowed at the the left and right sides after the mounting sleeve-embedded/ fixed into the ground.Ensure the light be installed at most accurate and suitable direction.
ELECTRONICS
| Power(Luminaire) | 42W/48W/54W | Power Factor | >0.9 |
| Input Voltage | DC24V DC36V DC48V AC110-130V AC110-240V AC220-240V 50/60Hz | Driver Option | Integral control gear |
| Dmming Type | ON/OFF, 0-10V, DALI, Triac, DMX512 | Driver | Integral control gear |

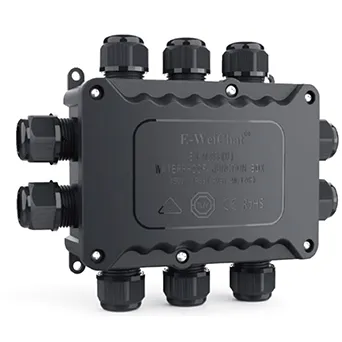

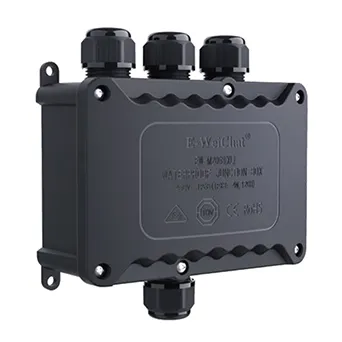

| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | 18PCS SMD | Lumen（Luminaire): | 3780LM/4320LM/4860LM |
| LED Brand | CREE/TYANSHINE SMD | Luminaire Lminous Efficacy | 80LM/W |
| Full White LED(FW) | 2200K,2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500K | Tunable White | 2700K-6500K |
| Multi Color | RGB, RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 8°/12°/17°/20°/25°/30°/40°/45°/60°/10*22°/15*55°/15*30°/20*60° |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Filter, Honeycomb Louver, Round-meshed grill |
CONTROL SYSTEM
| Control | DMX512 /RDM/DALI/ 0-10V/Triac | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK09, IP67, Class I | Certificate | IP67, CE, ETL, RoHS, CCC |

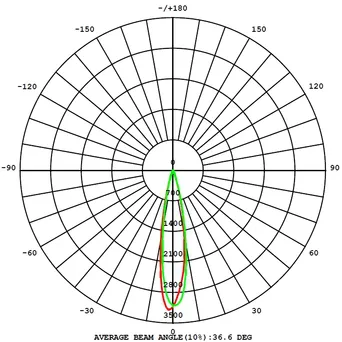

LIGHT DISTRIBUTION

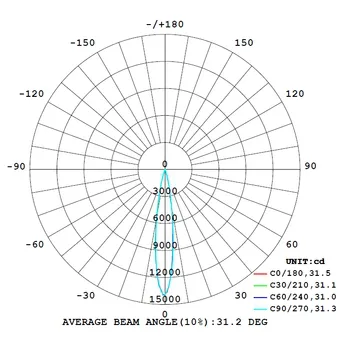

Average Beam Angle(10%) 25D
Average Beam Angle(10%) 30D

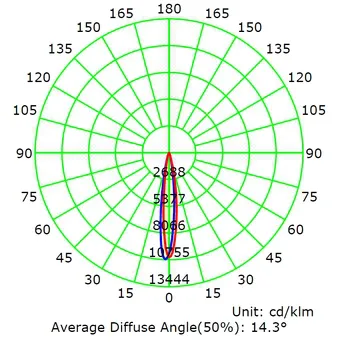

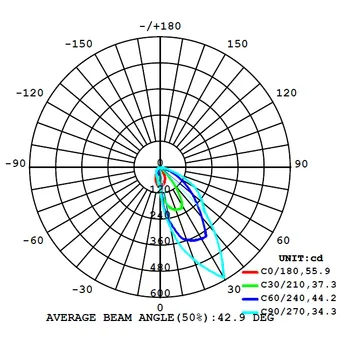

Average Diffuse Angle(50%) 15D
Average Diffuse Angle(50%) ASY 30D
MECHANICS
| Dimension | 248x208mm | Weight | 5.55KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |
| Finish | Powder Coated | Mounting Type | ground recessed |
OPTIONAL ACCESSORIES
20T-2_3_4PIN IP68 Connector

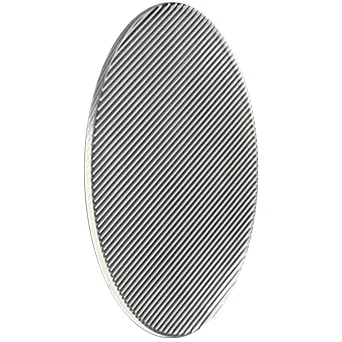

Diffuser 1
Diffuser 2

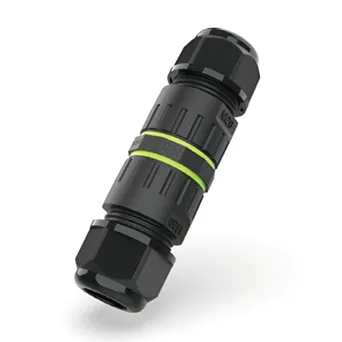

EW-M2068 2_3PIN IP68 Connector

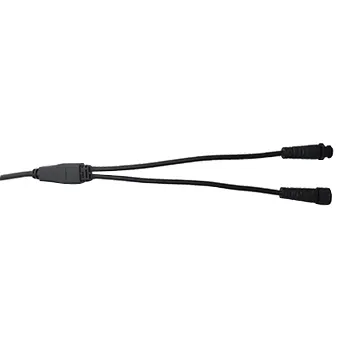

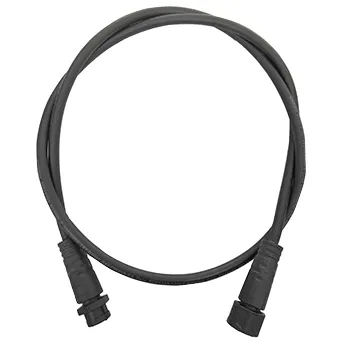

Extension Cable

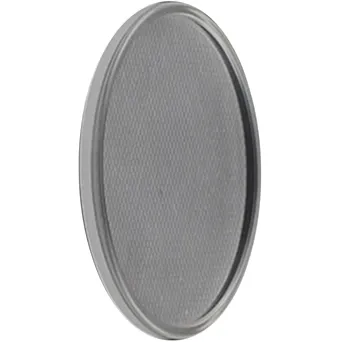

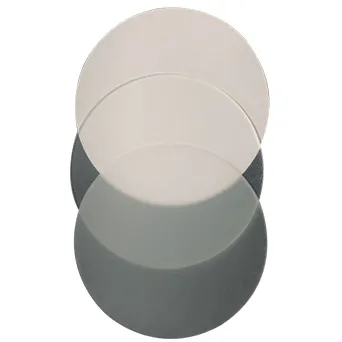

Filter

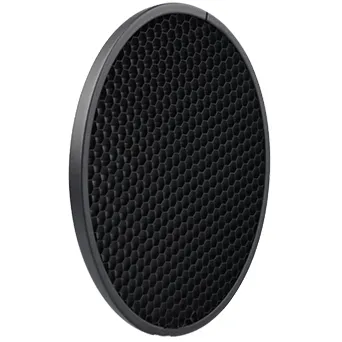

Honeycomb Louver

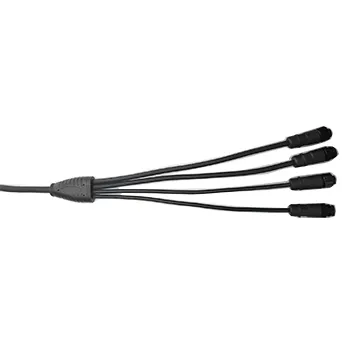

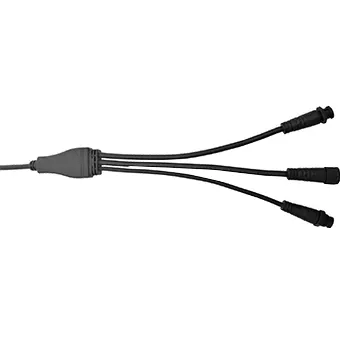

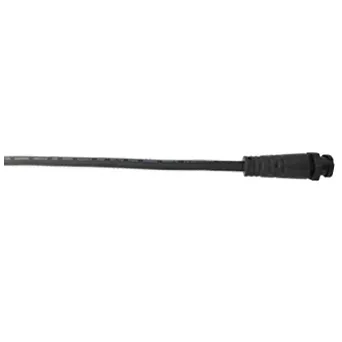

Input Cable 1
Input Cable 2
Input Cable 3
Input Cable 4

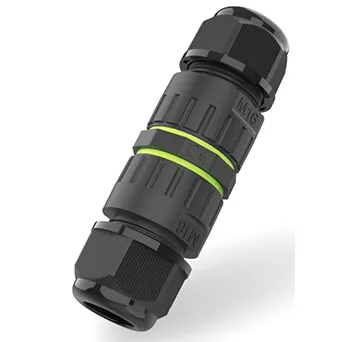

M16 2_3PIN IP68 Connector

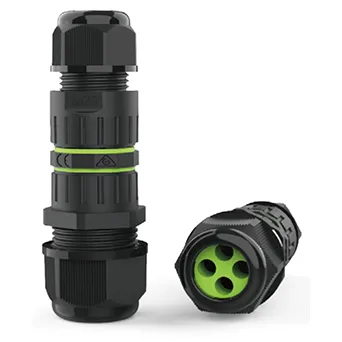

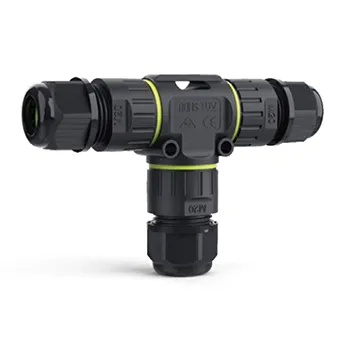

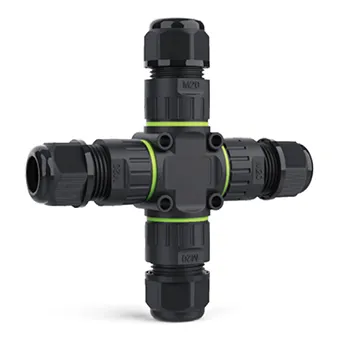

M20 3_4_5_6PIN IP68 Connector
M20X 2_3PIN IP68 Connector
M25 3_4_5PIN IP68 Connector
M2068 2_3PIN IP68 Connector

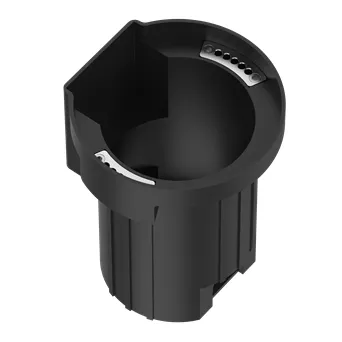

Mounting Box

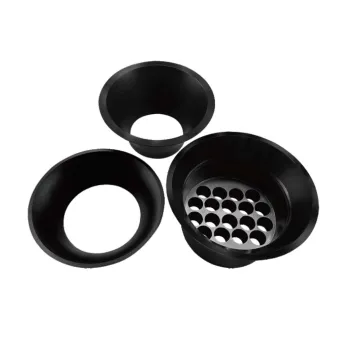

Round -meshed grill & Light Control Cup

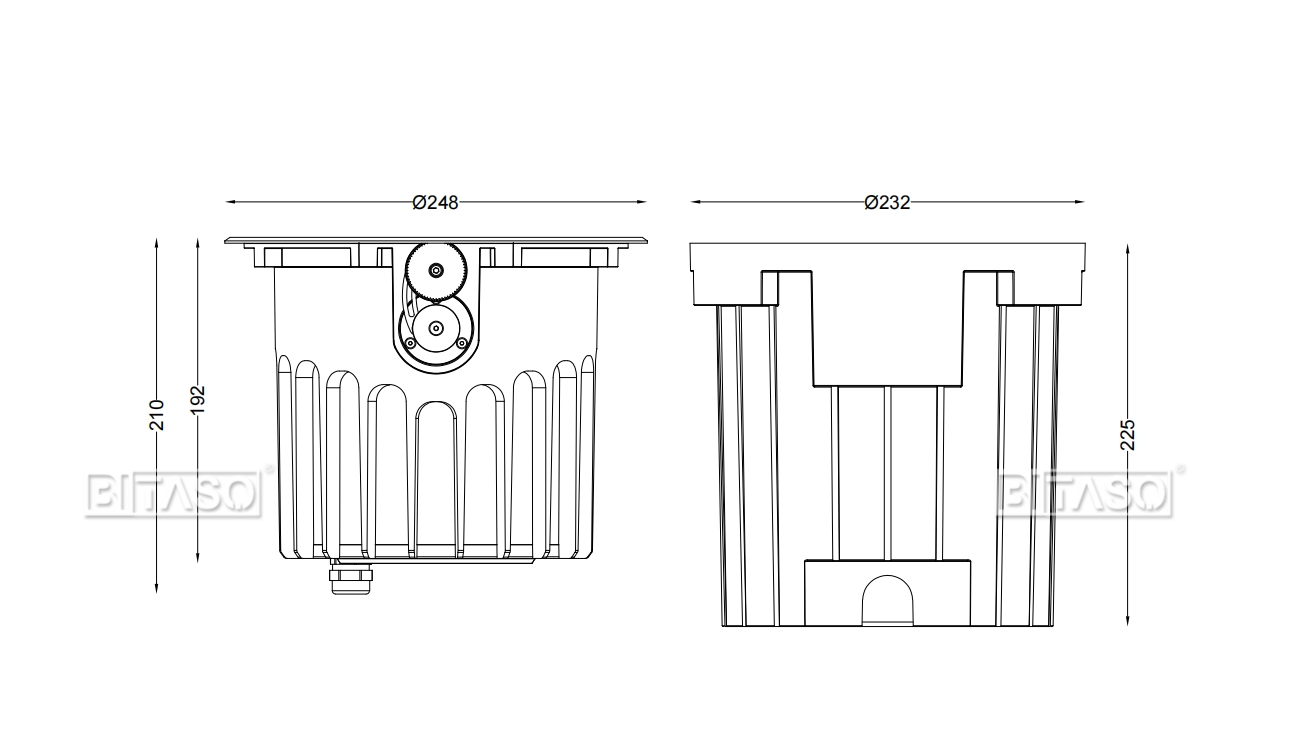

LUMINAIRE DIMENSION
DOWNLOAD

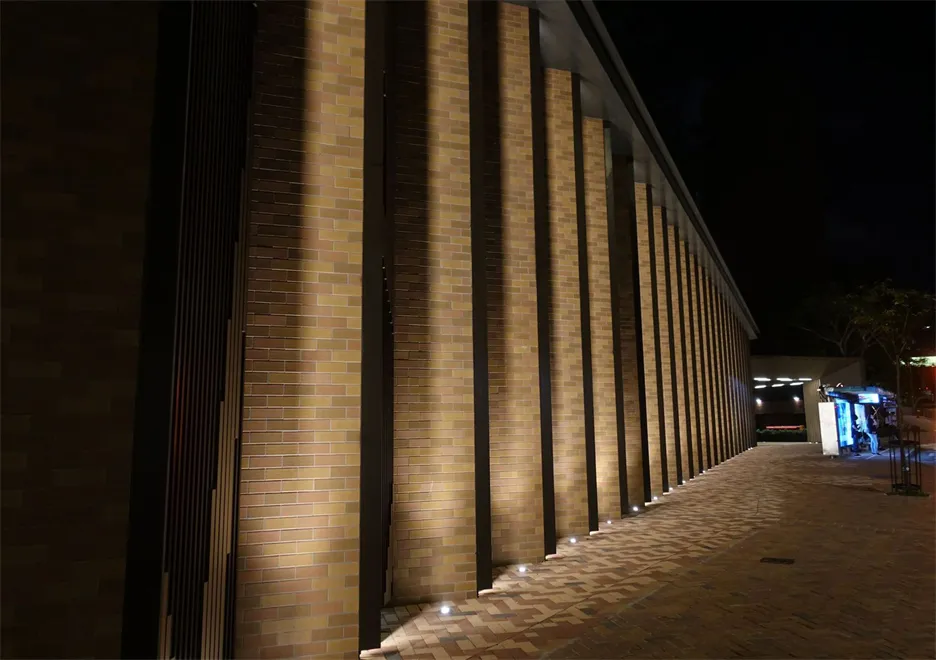

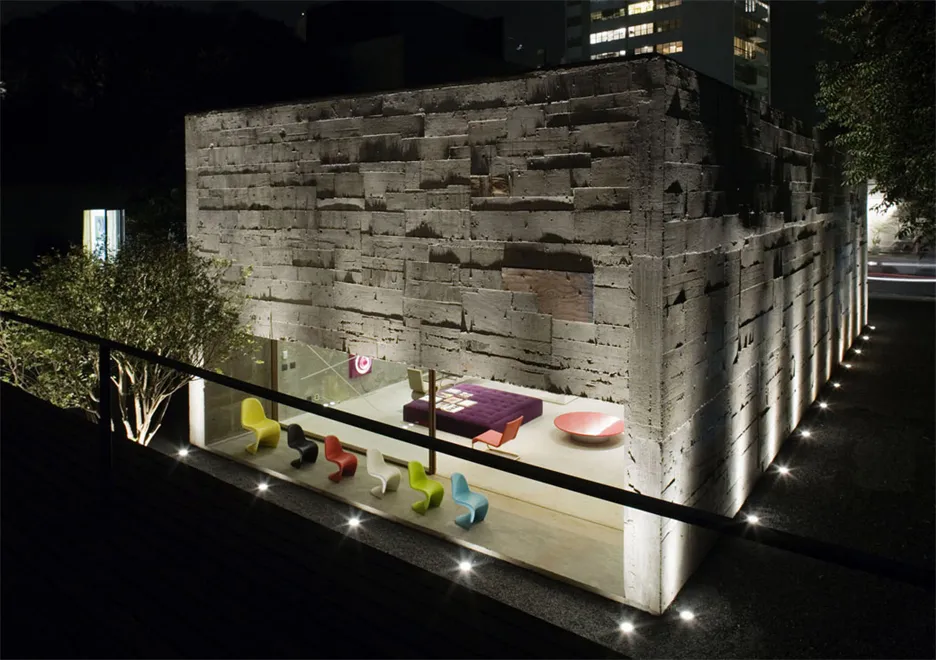

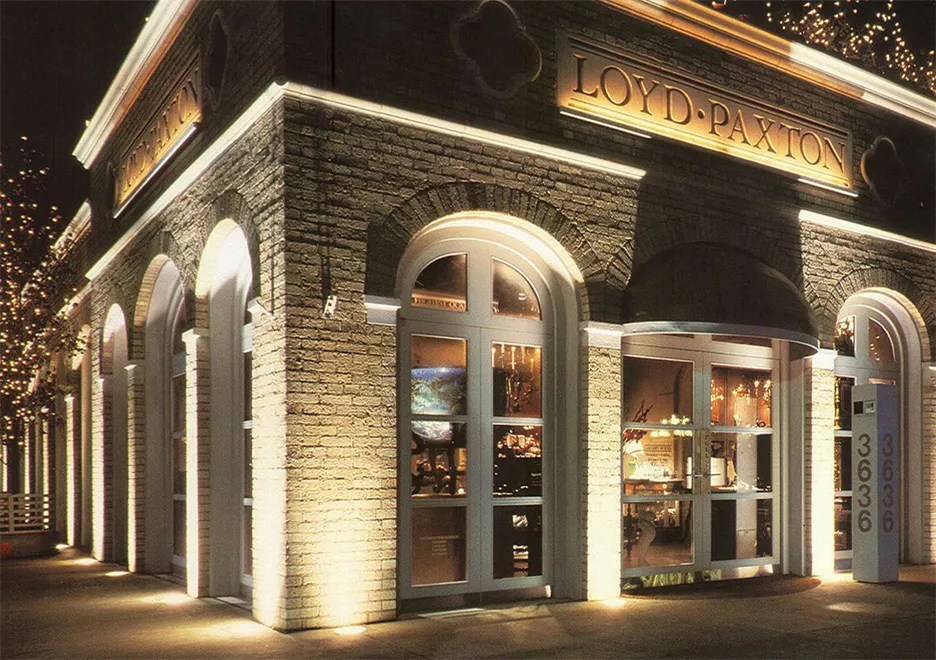

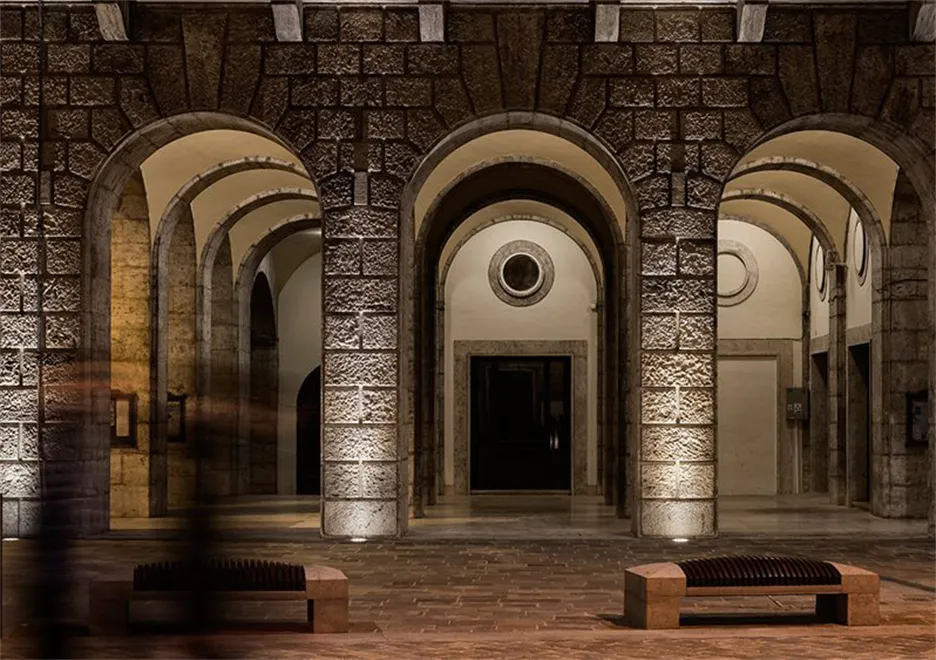

PROJECT REFERENCE
